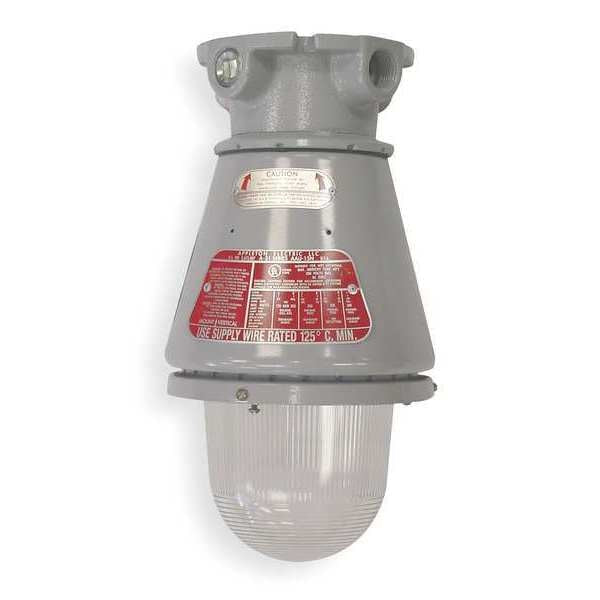

Fixture, Ceiling Mount

SKU
Brand Appleton Electric
Categories
Description Hazardous Location Lighting Fixtures, Explosion Proof Incandescent Fixture Fixture Type, Incandescent Lamp Type, Lamp Quantity 1, Bulb Designation 300M, Lamp Watts 300 W, Suggested Lamp Item No. 4V625, Fixture Wattage 300, Fixture Item Number 2V738, Mounting Bracket Item Number 2V740, Voltage 120V AC, For Chemical, Petro-chemical Plants, Refineries, No Lamp Included, Epoxy Powder Coated Housing Finish, Finish Gray Epoxy Powder Coated, Ceiling Mounting, Length 7 in, Height 13-3/4 in, Width 7 in
graingerSKU: 7D772, mscSKU: , zoro_no: G1805991, mongo_id: 65bbe6d13aaddbd5a9056b6c

Web Price

$568.74 / each

Qty

Product Details

BAA Compliant Yes

Bulb Designation 300M

CA Title 24 Compliant No

Color Temperature Lamp Dependent

Country of Origin (subject to change) Mexico

Description/Special Features For Chemical, Petro-chemical Plants, Refineries

Dimmable No

Emergency Battery Backup No

Finish Epoxy Powder Coated

Fixture Item Number 2V738

Fixture Type Explosion Proof Incandescent Fixture

Fixture Type - Decorative and Surface Mount Fixtures Hazardous Location Pendant

Fixture Voltage 120V AC

Fixture Wattage 300

Flasher Strobe Color Not Applicable

For Bulb Shape A23/PS25

For Bulb Type Incandescent

For Max. Bulb Wattage 300 W

For Number of Bulbs 1

Height 13-3/4 in

Height (In.) 13-3/4

Housing Finish Epoxy Powder Coated

Item - Decorative and Surface Mount Fixtures Traditional Surface Mount Fixture

Lamp Included No

Lamp Quantity 1

Lamp Type Incandescent

Lamp Type - Fixtures A23, PS25

Lamp Watts 300 W

Lamp Watts - Fixtures 300.0

Length 7 in

Length (In.) 7

Light Technology Incandescent

Lighting Technology Incandescent

Linkable Up To Unlinkable

Lumens Not Applicable

Lumens per Watt Not Applicable

Match Code 3

Max. Fixture Wattage 300 W

Mounting Ceiling

Mounting Bracket Item Number 2V740

Mounting Location Ceiling

Nominal Height 13 3/4 in

Nominal Length 7 in

Nominal Size - Fixtures 1 ft x 1 ft

Nominal Width 7 in

Number of Bulbs 0

Overall Height 13 3/4 in

Overall Length 7 in

Overall Width 7 in

Package Quantity 1

Safety Rating Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III

Series A-51 Incandescent

Standards Class I, Div 1 and 2, Groups A, B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III, ULE10794, UL1598, UL 1598, UL 844, UL Listed E10444, CSA Standard C22.2 No. 250, C22.2 No. 137, CSA Certified 025428

Suggested Lamp Item No. 4V625

Temperature Code T3C

Voltage 120V AC

Width 7 in

Width (In.) 7
