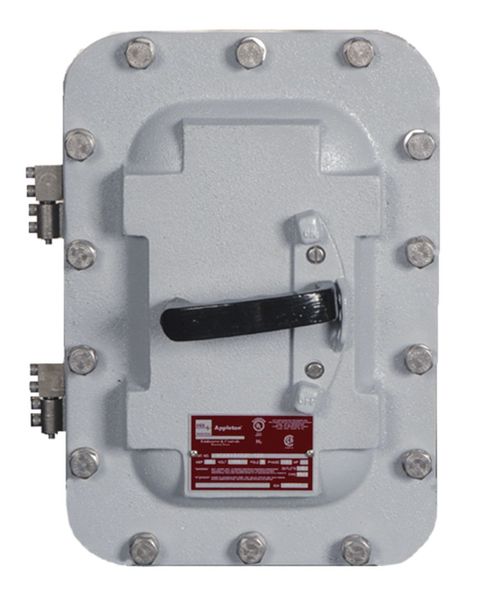

Hazardous Location Circuit Breaker, 225 A, 600V AC, 3 Pole

SKU
Brand Appleton Electric
Categories
Description Hazardous Location Circuit Breaker, Number of Poles 3, 225 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 240V AC, Standard Circuit Breaker Type, Frame Size 250/JD, Circuit Breaker Actuator Non-Interchangeable Trip, Circuit Breaker Included Cutler-Hammer, DC Voltage Rating 125/250V DC, Ground Lug Terminal Connection, Min. Wire Size 4 AWG, Max. Wire Size 350 MCM, Housing Material Copper-Free Aluminum, Enclosure Rating NEMA 4, 4X, Length 29.5 in, Width 16 in, Depth 12.28 in
graingerSKU: 12T716, mscSKU: , zoro_no: G2261290, mongo_id: 65bbe7283aaddbd5a9079d2e

Web Price

$10,204.99 / each

Qty

Product Details

AC Voltage Rating 600V AC

AIR @ 240VAC 65kA

AIR @ 480VAC 35.0kA

AIR @ 600VAC 18kA

Amps 225 A

Circuit Breaker Actuator Non-Interchangeable Trip

Circuit Breaker Included Cutler-Hammer

Circuit Breaker Type Standard

Conduit Size 3 in

Country of Origin (subject to change) United States

DC Voltage Rating 125/250V DC

Depth 12.28 in

Enclosure Rating NEMA 4, 4X

Features Dust-Ignitionproof, Explosionproof, External Flange Maximizes Internal Space, External Operating Handle with Stops for Limiting Handle Travel, Standard Outlets Top and Bottom for Line and Load Wiring, Watertight

Frame Size 250/JD

Housing Material Copper-Free Aluminum

Instantaneous Trip Fixed

Length 29.5 in

Length (Straight Wireway) 29.5 in

Max. AIR Rating 65kA at 240V AC

Max. Wire Size 350 MCM

Min. Wire Size 4 AWG

Number of Outlets 2

Number of Poles 3

Package Quantity 1

Safety Rating Class I, Division I and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

Standards C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, C22.2 No. 5, CSA Certified (800A Max): 1324917, CSA Standard: C22.2 No. 0, UL Classified: E84577, UL Standard: UL 1203

Switch Type Non-Interchangable Trip

Terminal Connection Ground Lug

Width 16 in
