Home / Hazardous Location Circuit Breaker, 600 A, 600V AC, 2 Pole

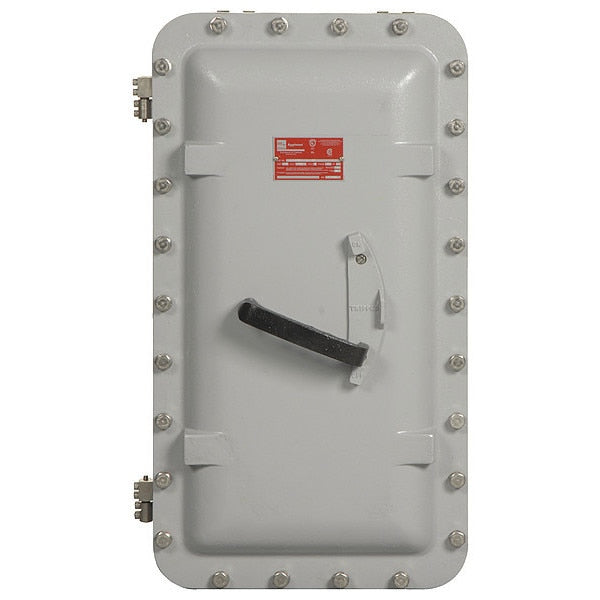

Hazardous Location Circuit Breaker, 600 A, 600V AC, 2 Pole

SKU
Brand Appleton Electric
Categories
Description Hazardous Location Circuit Breaker, Number of Poles 2, 600 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 240V AC, Standard Circuit Breaker Type, Frame Size 600/LD, Circuit Breaker Actuator Non-Interchangeable Trip, Circuit Breaker Included Cutler-Hammer, DC Voltage Rating 125/250V DC, Box Lug Terminal Connection, Min. Wire Size 4 AWG, Max. Wire Size 350 MCM, Housing Material Copper-Free Aluminum, Enclosure Rating NEMA 4, 4X, Length 37.88 in, Width 13.63 in, Depth 12.81 in
graingerSKU: 12T701, mscSKU: , zoro_no: G2261430, mongo_id: 65bbe79c3aaddbd5a90a4de1

Web Price

$22,212.49 / each

Qty

Product Details

AC Voltage Rating 600V AC

AIR @ 240VAC 65kA

AIR @ 480VAC 35.0kA

AIR @ 600VAC 22kA

Amps 600 A

Circuit Breaker Actuator Non-Interchangeable Trip

Circuit Breaker Included Cutler-Hammer

Circuit Breaker Type Standard

Conduit Size 4 in

Country of Origin (subject to change) United States

DC Voltage Rating 125/250V DC

Depth 12.81 in

Enclosure Rating NEMA 4, 4X

Features Dust-Ignitionproof, Explosionproof, External Flange Maximizes Internal Space, External Operating Handle with Stops for Limiting Handle Travel, Standard Outlets Top and Bottom for Line and Load Wiring, Watertight

Frame Size 600/LD

Housing Material Copper-Free Aluminum

Instantaneous Trip Fixed

Length 37.88 in

Length (Straight Wireway) 37.88 in

Max. AIR Rating 65kA at 240V AC

Max. Wire Size 350 MCM

Min. Wire Size 4 AWG

Number of Outlets 4

Number of Poles 2

Package Quantity 1

Safety Rating Class I, Division I and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

Standards C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, C22.2 No. 5, CSA Certified (800A Max): 1324917, CSA Standard: C22.2 No. 0, UL Classified: E84577, UL Standard: UL 1203

Switch Type Non-Interchangable Trip

Terminal Connection Box Lug

Width 13.63 in
