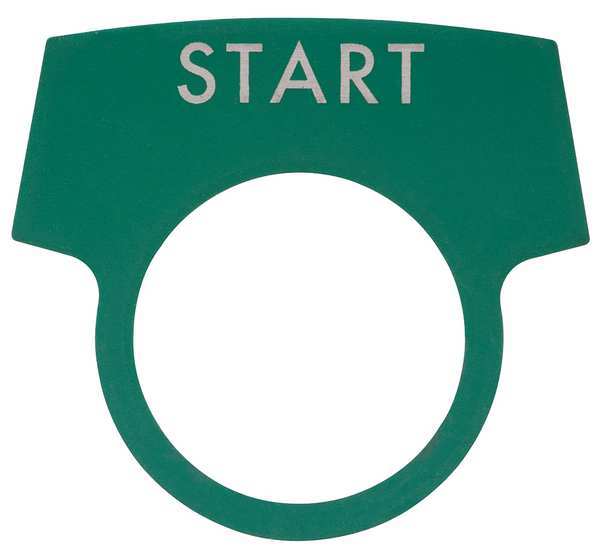

Legend Plate, Start, White/Black

SKU
Brand Appleton Electric
Categories
Description Legend Plate, 1/2 Round, Legend Start, For Use With EFD and EFDB Control Stations, Legend/Background Color White/Black, Material Aluminum
graingerSKU: 12F585, mscSKU: , zoro_no: G0118244, mongo_id: 65bbe7e49a749db822761e64

Web Price

$21.24 / each

Qty

Product Details

Country of Origin (subject to change) United States

For Use With EFD and EFDB Control Stations

Legend Start

Legend/Background Color White/Black

Material Aluminum

Modified Operation Three Position Selector Switches Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. Alternate contacts available. See catalog pages for details

N1 and N1 Standard Materials and Finishes 30% glass-reinforced thermoplastic polyetherimide. Teflon coated stainless steel cover bolts and Mylar nameplates.

N1 Series NEC Certifications and Compliances Class I, Division 1 and 2, Groups C, D; NEMA 3R, 4X, 7CD, 12

N2 Series NEC Certifications and Compliances Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3R, 4X, 9EFG, 12

Nameplate Mounting Bracket Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.

Operator Size 30 mm

Optional Lockout Stainless steel selector switch lockout, locks two or three position handle in any position. Securing rod for push button units. See catalog pages for details

Package Quantity 1

Pilot Light Options Pilot light jewel/guard assembly is available in amber, blue, clear, green and opal. LED jewel/guard assembly is available in red, amber and green. See catalog pages for details

Shape 1/2 Round

SPBB Standard Materials and Finishes Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)

SPLS Standard Materials and Finishes Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel

SSBA Standard Materials and Finishes Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block
