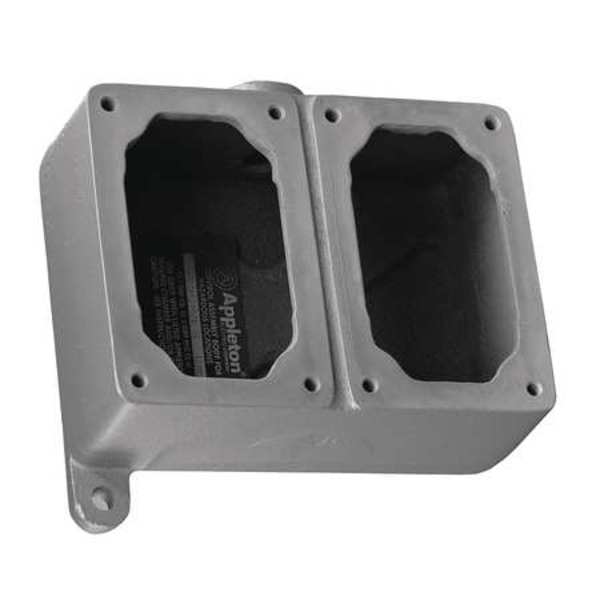

Mounting Body, 2Gang, 3/4In, Dead-End, Iron

SKU
Brand Appleton Electric
Categories
Description Mounting Body for EDS Series, 2-Gang, Hub Size 3/4, Number of Gangs 2, Hub Style Dead-End, Material of Construction Malleable Iron, Height 6.06 In., Width 7.44 In., Depth 5.31 In., Standards UL 508, UL 698, UL 1203; C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III, Includes Internal Ground Screw
graingerSKU: null, mscSKU: null, zoro_no: G3941847, mongo_id: 65bbe6a53aaddbd5a9043f07

Web Price

$252.49 / each

Qty

Product Details

Box Type Gang

Country of Origin (subject to change) Mexico

Depth 5.31

EDS Standard Materials and Finishes Control station has a malleable iron body and cover with a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; sealing chamber is copperfree (4/10 of 1% max.) aluminum with a natural finish; and nylon operating handle

EFD/EDS Brazen Hubs Units may be supplied with brazed hubs as 3-, 4-, and 5-gang in a variety of hub configurations. See catalog pages for how to order these and other custom units by adding suffixes to mounting body catalog numbers

EFD/EFDB Lockouts Selector switch lockout locks two or three position handle in any position. Securing rod for push button lockout guard is also available. See catalog pages for details

EFDB Standard Materials and Finishes Control station has a malleable iron body with a copperfree (4/10 of 1% max.) aluminum cover. Both have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat

Height 6.06

Hub Size 3/4

Hub Style Dead-end

Includes Internal Ground Screw

Material Malleable Iron

Modified Operation Three Position Selector Switches Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details

Nameplate Mounting Bracket Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.

Number of Gang 2-Gang

Number of Gangs 2

Option Materials 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details

Package Quantity 1

SPBB Standard Materials and Finishes Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)

SPLN/SPLS Standard Materials and Finishes Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel

SSBA Standard Materials and Finishes Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block

Standards UL 508, UL 698, UL 1203; C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

Width 7.44
