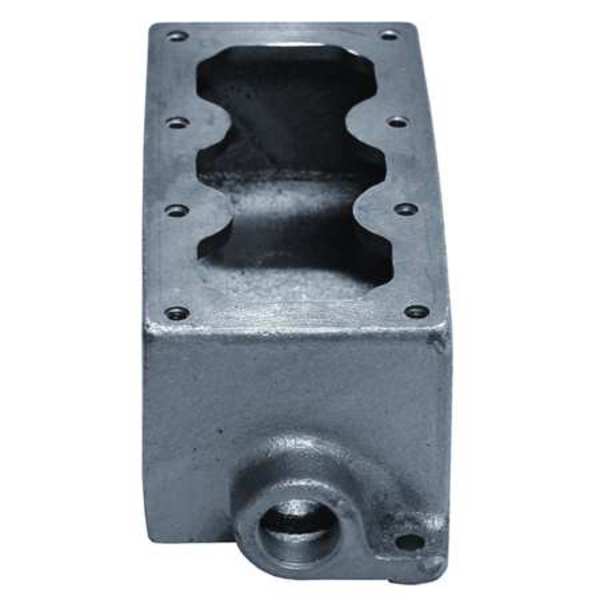

Mounting Body, 3Device, 1In, DeadEnd, Alum

SKU
Brand Appleton Electric
Categories
Description Mounting Body for Contender Series, 3-Device, Hub Size 1 In., Hub Style Dead-End, Material of Construction CF Alum, Height 8.34 In., Width 3.72 In., Depth 3.06 In., Standards UL 894, UL 1203, UL Listed for Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III, Includes Internal Ground Screw
graingerSKU: 13V027, mscSKU: , zoro_no: G0094392, mongo_id: 65bbe9bf22d7a989a99756f3

Web Price

$452.49 / each

Qty

Product Details

Body and Cover Standard Materials and Finishes Malleable iron body and cover with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat

Box Type Gang

Country of Origin (subject to change) Mexico

Depth 3.06

Height 8.34

Hub Size 1

Hub Style Dead-end

Incandescent Pilot Lights Amber, blue, clear, green, opal pilot light jewel/guard assembly. See catalog pages for details

Includes Internal Ground Screw

LED Pilot Lights Red, amber, green pilot available in lieu of incandescent pilot lights. See catalog pages for details

Material Copperfree Aluminum

Modified Operation Three Position Selector Switches Momentary contact right position, spring return to center, maintained contact left position (with or without alternate contacts). Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details

Number of Gang 3-Gang

Option Materials 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details

Optional Lockouts Selector switch lockout locks two or three position handle in any position. Securing rod for push button lockout guard is also available. See catalog pages for details

Package Quantity 1

SPBB Standard Materials and Finishes Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)

SPLS Standard Materials and Finishes Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel

SSBA Standard Materials and Finishes Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block

Standards UL 894, UL 1203, UL Listed for Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

Width 3.72
