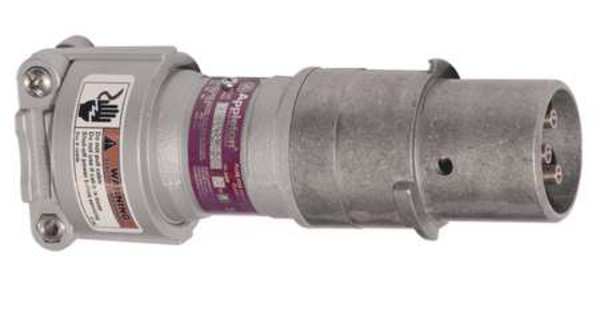

Pin & Sleeve Plug, 60A, 4P, 3W, Alum, 600VAC

SKU
Brand Appleton Electric
Categories
Description Pin and Sleeve Plug, Current Rating 60 A, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Housing Color Gray, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Wire Connection Type Wire Leads, Cap Type Screw-On Cap, Connection Orientation Straight, Face Diameter 2.55 in, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2
graingerSKU: null, mscSKU: null, zoro_no: G7455917, mongo_id: 65bbe6cb3aaddbd5a9053da4

Web Price

$1,007.49 / each

Product Details

Amperage 30 or 60

Amps 60 A

Cap Type Screw-On Cap

Compatible with Series EBR; EBRH

Connection Orientation Straight

Country of Origin (subject to change) Mexico

Current Rating 60 A

Face Diameter 2.55 in

Features Spring Door Keeps Dust out of Receptacle

For Environment Corrosive, Damp

For Maximum Cable Diameter 1.125 in

For Minimum Cable Diameter 0.5 in

Grounding Grounded

Grounding Style Style 2

Hazardous Area Classification 30 and 60 Amp CES: Class I, Division 1 and 2, Groups C, D; 30 Amp CESD: Class I, Division 1 and 2, Groups C, D; 60 Amp CESD: Class I, Division 1 and 2, Group D

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Horsepower Ratings 1-1/2, 3 or 5

Housing Color Gray

Housing Material Metallic

Housing Material Finish Epoxy Coat with Powder Finish

Insulation Material Fiberglass-Reinforced Polyester

Market Industrial

Material Copper-Free Aluminum

Materials and Finishes Receptacles, covers and caps are copperfree (4/10 of 1% max.) aluminum with ceramic burnished. Mounting box is malleable iron with triple-coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat finish. Insulating blocks are fiber glass reinfor

Mounting Box Entries Dead-End

NEMA Enclosure Rating 3, 3R, 4, 4X, 7CD, 9FG

NEMA Rating 3, 3R, 4, 4X, 7BCD, 9FG

Number of Poles 4

Number of Wires 3

Outside Diameter 3.06 in

Overall Length 8.44 in

Package Quantity 1

Phase Three

Pin & Sleeve Standards CSA Certifications, UL 1682, UL Listed

Pin & Sleeve Standards` UL 1682

Plug Cable Diameter 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;

Reverse Service No

Standards CSA Certified 038644, CSA Certified C22. No. 30, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 182.1, UL 1010, UL 1203, UL 1682, UL 894, UL E10784

Switch Rated No

Voltage 600V AC

Voltage Rating 600V AC

Wire Connection Type Wire Leads
