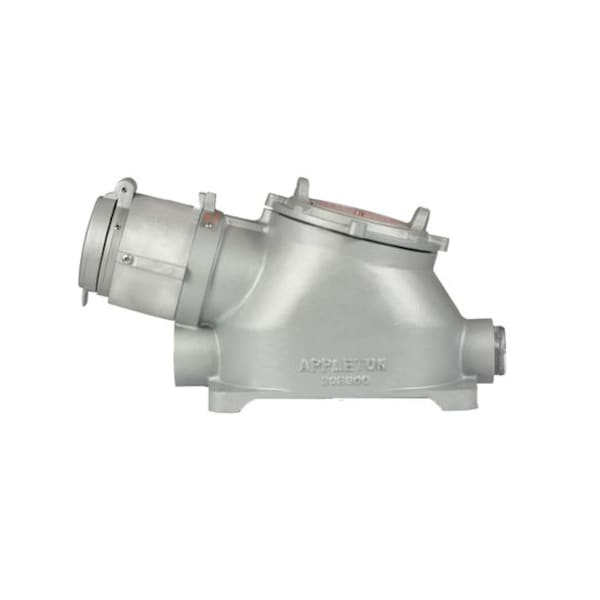

Plug, 100A, 4P, 3W, 600V, NEMA 3, 3R, 4, 4X, 12

SKU
Brand Appleton Electric
Categories
Description Plug, Current Rating 100 A, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 75 hp, Housing Color Gray, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Cap Type Screw-On Cap, Connection Orientation Straight, Face Diameter 2.47 in, For Maximum Cable Diameter 1.906 in, For Minimum Cable Diameter 0.875 in, Grounding Grounded, Grounding Style Style 2
graingerSKU: 12G127, mscSKU: , zoro_no: G4116716, mongo_id: 65bbe84622d7a989a98e7760

Web Price

$842.49 / each

Product Details

Amps 100 A

Amps - Plugs and Receptacles 100A

Cap Type Screw-On Cap

Compatible with Series FSQC

Connection Orientation Straight

Country of Origin (subject to change) Mexico

Current Rating 100 A

Face Diameter 2.47 in

Features Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage

Finish aluminum with epoxy powder coat

For Environment Hazardous Location

For Maximum Cable Diameter 1.906 in

For Minimum Cable Diameter 0.875 in

Grounding Grounded

Grounding Style Style 2

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Horsepower Rating 75 hp

Housing Color Gray

Housing Material Metallic

Housing Material Finish Epoxy Coat with Powder Finish

Insulation Material Fiberglass-Reinforced Polyester

Material Copperfree Aluminum

Maximum Wire Size 1/0 AWG

Minimum Wire Size 2 AWG

Mounting Box Feed-Thru

NEMA Enclosure Rating 3, 3R, 4, 4X, 7CD, 9FG

NEMA Rating 12, 3, 3R, 4, 4X

Number of Poles 4

Number of Wires 3

Outside Diameter 4 in

Overall Length 10.5 in

Package Quantity 1

Phase Three

Pin & Sleeve Standards CSA Certifications, UL 1682, UL Listed

Pin & Sleeve Standards` UL 1682

Polarized Yes

Reverse Service No

Standards CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784

Switch Rated No

Voltage 600V AC

Voltage Rating 600V AC
