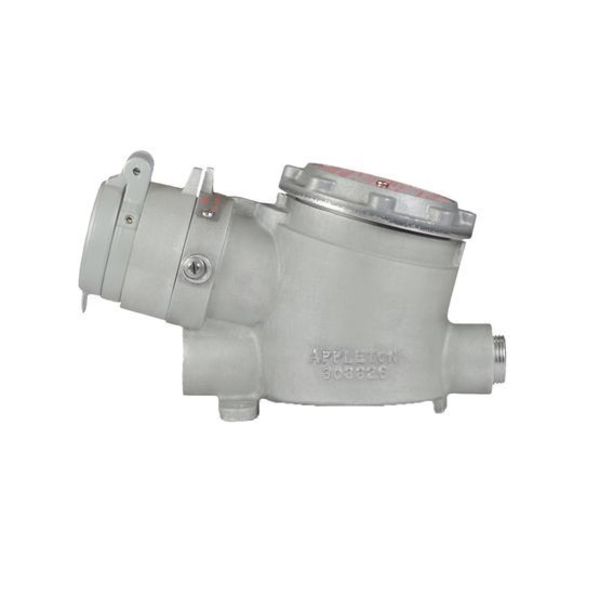

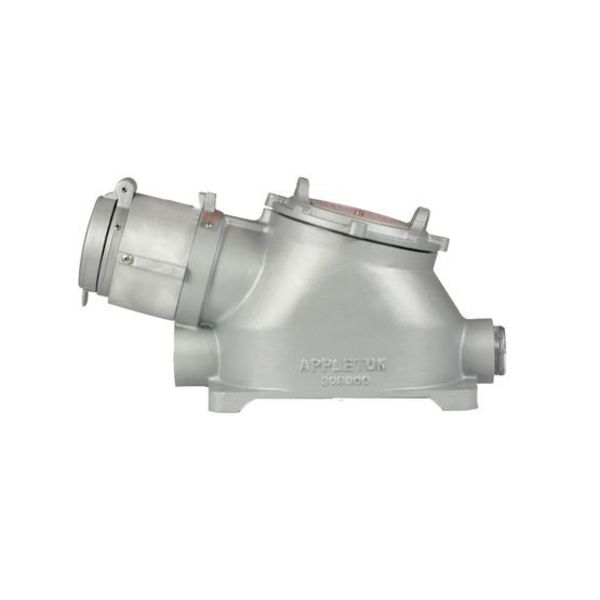

Plug, 60A, 4P, 3W, Alum, 600V, NEMA 3, 3R, 4, 4X

SKU
Brand Appleton Electric
Categories
Description Plug, Current Rating 60 A, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 30 hp, Housing Color Gray, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Cap Type Screw-On Cap, Connection Orientation Straight, Face Diameter 2.23 in, For Maximum Cable Diameter 1.375 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2
graingerSKU: , mscSKU: , zoro_no: G4289117, mongo_id: 65bbe6203aaddbd5a900c37c

Web Price

$576.24 / each

Product Details

Amperage 30, 60 or 100

Amps 60 A

Cap Type Screw-On Cap

Compatible with Series FSQC

Connection Orientation Straight

Country of Origin (subject to change) Mexico

Current Rating 60 A

Face Diameter 2.23 in

Features Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage

For Environment Hazardous Location

For Maximum Cable Diameter 1.375 in

For Minimum Cable Diameter 0.5 in

Grounding Grounded

Grounding Style Style 2

Hazardous Area Classification Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Horsepower Rating 30 hp

Housing Color Gray

Housing Material Metallic

Housing Material Finish Epoxy Coat with Powder Finish

Insulation Material Fiberglass-Reinforced Polyester

Material Copperfree Aluminum

Materials and Finishes Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.

Maximum Wire Size 4 AWG

Minimum Wire Size 6 AWG

Mounting Box Entries Feed-Thru

NEMA Enclosure Rating 3, 3R, 4, 4X, 7CD, 9FG

NEMA Rating 3, 3R, 4, 4X

Number of Poles 4

Number of Wires 3

Outside Diameter 3.5 in

Overall Length 7.81 in

Package Quantity 1

Phase Three

Pin & Sleeve Standards CSA Certifications, UL 1682, UL Listed

Pin & Sleeve Standards` UL 1682

Plug Cable Diameter 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221;

Polarized Yes

Reverse Service No

Standards CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784

Switch Rated No

Voltage 600V AC

Voltage Rating 600V AC

Wire Range 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
