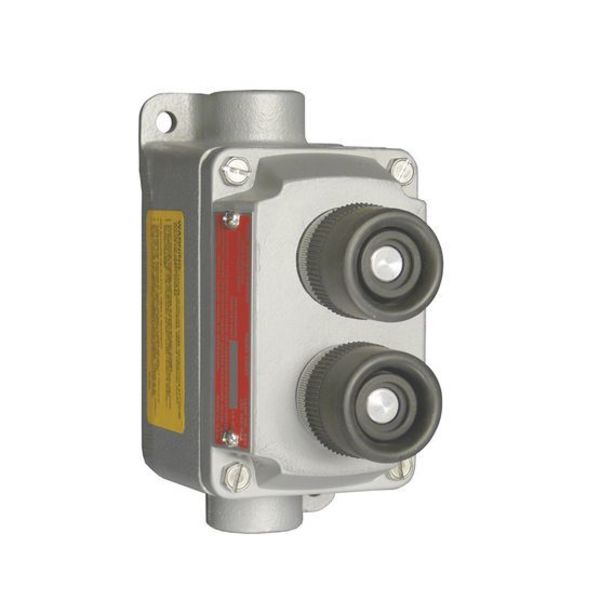

Push Button Switch

SKU
Brand Appleton Electric
Categories
Description Push Button Switch Assembly,4 Circuit, Push Buttons with Rocker Arm, 4 Circuit, Action Momentary, Legend On/Off, Number of Gangs 1, Number of Operators 2, Contact Rating 10A @ 600V AC, Series EFSR, NEMA Rating 3, IP Rating 54, Height 4.63 in, Width 3 in, Depth 1.5 in, Standards UL 1203, UL 508, UL 698
graingerSKU: 12F548, mscSKU: , zoro_no: G0117930, mongo_id: 65bbe65b3aaddbd5a9023f4a

Web Price

$346.24 / each

Qty

Product Details

Action Momentary

Contact Form 4 Circuit

Contact Rating 10A @ 600V AC

Country of Origin (subject to change) Mexico

Depth 1.5 in

EDS Standard Materials and Finishes Control station has a malleable iron body and cover with a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; sealing chamber is copperfree (4/10 of 1% max.) aluminum with a natural finish; and nylon operating handle

EFD/EFDB Lockouts Selector switch lockout locks two or three position handle in any position. Securing rod for push button lockout guard is also available. See catalog pages for details

EFDB Standard Materials and Finishes Control station has a malleable iron body with a copperfree (4/10 of 1% max.) aluminum cover. Both have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat

Height 4.63 in

IP Rating 54

Legend On/Off

Modified Operation Three Position Selector Switches Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details

Nameplate Mounting Bracket Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.

NEC and CEC Certifications and Compliances Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7CD, 9EFG

NEMA Rating 3

Number of Gangs 1

Number of Operators 2

Option Materials 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details

Package Quantity 1

Safety Rating Class 1, Division 1 and 2, Groups C, D; Class 2, Division 1 and 2, Groups E, F, G; and Class 2I

Series EFSR

SPBB Standard Materials and Finishes Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)

SPLN/SPLS Standard Materials and Finishes Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel

SSBA Standard Materials and Finishes Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block

Standards UL 1203, UL 508, UL 698

Type of Operator Push Buttons with Rocker Arm

Width 3 in
