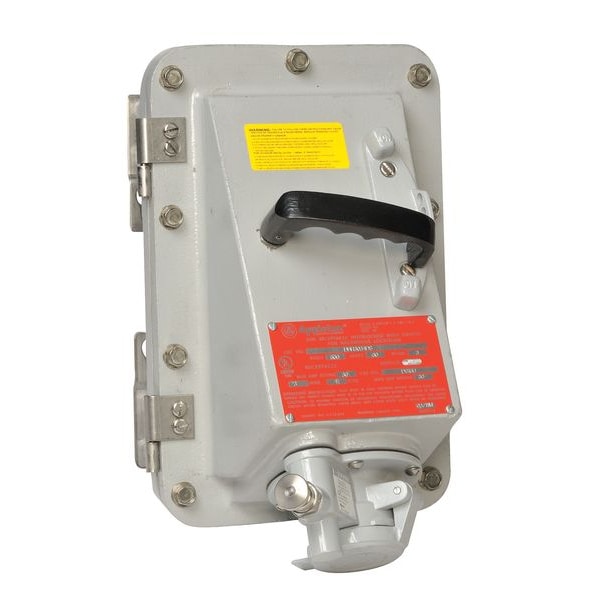

Receptacle w/Disconnect Switch, 30A, 3P, 2W

SKU
Brand Appleton Electric
Categories
Description Receptacle with Disconnect Switch, Circuit Breaker Amp Rating Not Applicable, Circuit Breaker Type Not Applicable, Current Rating 30 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle Yes, NEMA Enclosure Rating 3, 3R, 4, 4X, 9FG, Number of Poles 3, Number of Wires 2, Voltage Rating 600V AC, Compatible Plug Manufacturer Part Number Not Applicable
graingerSKU: 12G256, mscSKU: , zoro_no: G0118859, mongo_id: 65bbe8729a749db822791efa

Web Price

$5,061.24 / each

Qty

Product Details

Amperage 30, 60, 100 or 150

Amps 30 A

Circuit Breaker No

Circuit Breaker Amp Rating Not Applicable

Circuit Breaker Type Not Applicable

Compatible Plug Manufacturer Part Number Not Applicable

Compatible with Series Powertite

Contact Material Brass

Country of Origin (subject to change) Mexico

Current Rating 30 A

Disconnect Switch Yes

Enclosure Lock Type Padlockable

Finish Epoxy Powder Coated

For Environment Hazardous Location

For Maximum Cable Diameter Not Applicable

For Minimum Cable Diameter Not Applicable

Fuse Protection Non-Fused

Fuse Type Not Applicable

Grounding Grounded

Handle Type Knob

Hazardous Area Classification EBR Receptacle: Class I, Division 1 and 2, Groups B, C, D Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 7CD, 9FG?DBR Receptacle: Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 9FG

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Horsepower Rating 25 hp

Horsepower Ratings 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60 or 75

Housing Material Copper-Free Aluminum

Housing Material Finish Epoxy Powder Coated

Housing Material Type Metallic

HP_ 25 hp

Hub Diameter 1.5 in

Hub Type Feed Through

Includes Screw Cap

Includes Mounting Hardware Yes

Insulation Material Fiberglass-Reinforced Polyester

Locking Handle Yes

Material Copper-Free Aluminum

Materials and Finishes Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.

Maximum Wire Size Not Applicable

Mounting Box Copperfree Aluminum

Mounting Box Entries Feed-Thru

NEMA Enclosure Rating 3, 3R, 4, 4X, 9FG

NEMA Rating 3, 3R, 4, 4X, 9FG

Number of Gangs 1

Number of Poles 3

Number of Poles & Wires 3 Pole / 2 Wire

Number of Wires 2

Package Quantity 1

Phase Single

Plug Cable Diameter .500- 1.250 thru 1.09- 2.187 or .390- 1.375
