Home / Inflatable Purge Bladder, 40 In Dia

Inflatable Purge Bladder, 40 In Dia

SKU
Brand Aquasol
Categories Material Handling
Description Inflatable Purge Bladder, Compatible Pipe Diameter (Maximum) 40 in, Harness Length 36 in, Maximum Temperature 250 Degrees F, Gas Flow Rate (Maximum) 30 cfh, Features Connected By a Braided Tube, Reusable, Bladder Design Double Purge Bag System with High Heat Harness, Exterior Bag Material Polyurethane-Coated Nylon, Process Purging Multiple Pipes, Resistance Properties Spark Resistant, Standards CE Approved
graingerSKU: 18C645, mscSKU: , zoro_no: G8166277, mongo_id: 65bbe79a9a749db822748be9

Web Price

$1,763.74 / each

Qty

Product Details

Application MIG/TIG Welding, Purging

Bladder Design Double Purge Bag System with High Heat Harness

Compatible Pipe Diameter (Maximum) 40 in

Country of Origin (subject to change) United States

Diameter 40 in

Exterior Bag Material Polyurethane-Coated Nylon

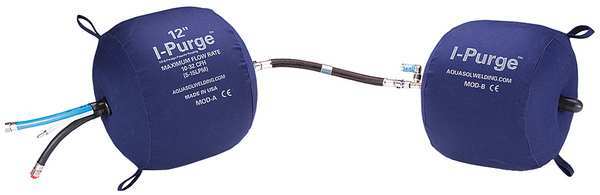

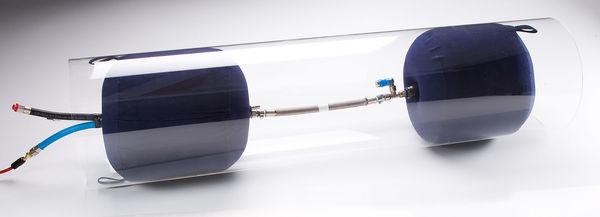

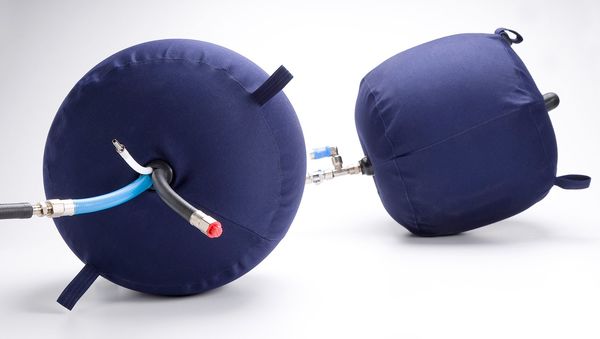

Features I-Purge is the reusable, economical and long term solution for pipe purging. I-Purge Inflatable Purge Bladder System is comprised of two inflatable lightweight polyurethane-coated nylon covered dams, connected by a braided tube. Ideal for purging multiple pipes of the same diameter and fabrication applications. Available in custom sizes upon request. Suitable for standard welding applications up to 392 Degrees F or 200 Degrees C. Adjust the flow meter to approximately 10-15 CFH (5-8 LPM) initally and upwards to 30 CFH (15 LPM) during operation.

For Use With EZ Zone Tape

Gas Flow Rate (Maximum) 30 cfh

Harness Length 36 in

Material Polyurethane-Coated Nylon

Maximum Temperature 250 Degrees F

Package Quantity 1

Process Purging Multiple Pipes

Resistance Properties Spark Resistant

Standards CE Approved
