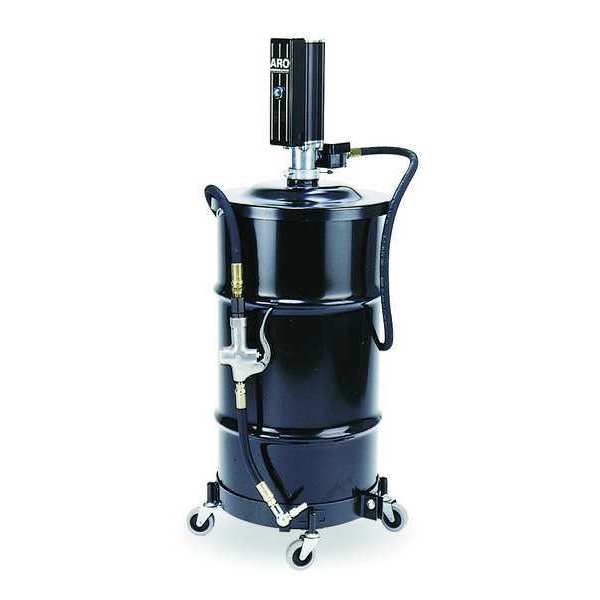

Gear Oil Package

SKU
Brand Aro
Categories
Description Air Operated Drum Pump, Max. Air Pressure 125 psi, Overall Length 44 1/8 in, Discharge Connection Type NPTF, Air Consumption 19 cfm, Hose Length 6 ft, Includes Discharge Hose Yes, Max. Viscosity 2,000 cps, Includes Suction Tube Yes, Includes Nozzle Yes, Includes Spout No
graingerSKU: 4ZT12, mscSKU: , zoro_no: G0739015, mongo_id: 65bbe7263aaddbd5a90796e7

Web Price

$2,437.49 / each

Qty

Product Details

Air Consumption 19 cfm

Air Inlet (In.) 1/4

Air Inlet Size 1/4 FNPT

Air Motor Size (In.) 2

Cart Type Included Drum Dolly

Compatible Chemicals Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil

Container Size 16 gal.

Container Size Included 16 Gallon Drum

Country of Origin (subject to change) United States

Discharge Connection Type NPTF

For Container Size 16 gal

For Container Type Drum

For Media Type Hydraulic Oils (Petroleum), Motor Oil

Gear Lube NT

Grease NT

Hose Length 6 ft

Housing Material - Pumps Carbon Steel

Includes Control Handle, Dolly, Drum Cover, Hose, Meter (PTS), Pump

Includes Discharge Hose Yes

Includes Nozzle Yes

Includes Spout No

Includes Suction Tube Yes

Max. Air Inlet PSI 150

Max. Air Pressure 125 psi

Max. Flow Rate 9 gpm

Max. Oil Flow 3.4 gpm

Max. Outlet Pressure 375 psi

Max. Output 6 gpm

Max. Viscosity 2,000 cps

Metered Yes

Min. Air Pressure 0 psi

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Nozzle Operation Manual

Outlet Pressure Max. (PSI) 450

Overall Length 44 1/8 in

Package Quantity 1

Power Source Air

Pump Ratio 3:1

Ratio 3:1

Suction Tube Length 22 in

Working Flow Max. (GPM) 6
