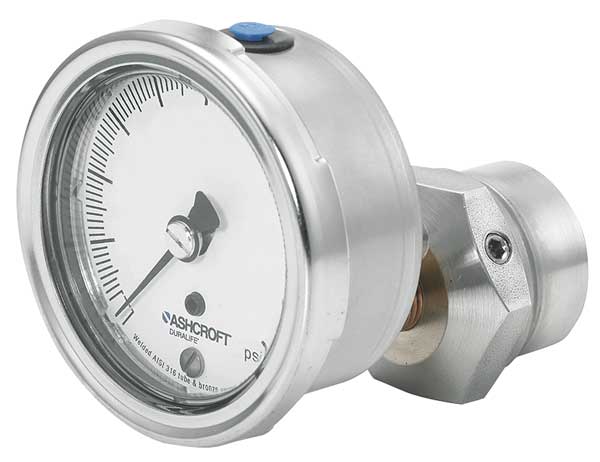

Compound Gauge, -30 to 0 to 30 in Hg/psi, 1/4 in MNPT, Stainless Steel, Silver

SKU
Brand Ashcroft
Categories
Description Compound Gauge, Gauge Type With Seal, Dial Size (In.) 2-1/2, Range 30" Hg VAC to 30 psi, Dial Size (mm) 63, Connection Size 1/4" NPT, Connection Location Lower Back, Smallest Graduation (PSI) 1, Smallest Graduation (In. Hg) 1, Accuracy (%) +/-1, Case Material Stainless Steel, Socket Material 316SS, Tube Material 316SS, Lens Material Polycarbonate, Ring Material Stainless Steel, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Series 1009, Manufacturers Warranty Length 5 Years
graingerSKU: 4EFW6, mscSKU: , zoro_no: G0029644, mongo_id: 65bbee41526e052139afe4d1

Web Price

$163.74 / each

Qty

Product Details

Accuracy +/-1.50%

Accuracy Grade ASME B40.100 Grade 1A

Accuracy Scale Full Scale

Adjustable Pointer No

Ambient Operating Temperature Range -40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C

Application Industrial, Autoclave

Basic Gauge Case Material Stainless Steel

Basic Gauge Lens Material Plastic

Basic Gauge Sensor Material Stainless Steel

Basic Gauge Socket Material Stainless Steel

Basic Gauge Wetted Parts Stainless Steel

Blowout Safety Back No

Burst Pressure 1,400 psi

Calibration Certificate Included No

Case Color Stainless Steel

Case Construction Welded

Case Depth 1.25 in

Case Diameter 2.75 in

Case Material Stainless Steel

Cleaned for Oxygen Service No

Clog Resistant No

Color Silver

Connection Location Lower Back

Connection Size 1/4 in NPT

Country of Origin (subject to change) United States

Dial Color White

Dial Size (In.) 2-1/2

Diameter 2-3/4

Diaphragm Seal Process Connection Threaded

Diaphragm Seal Type Welded

Dry Dampening Feature None

Field Fillable Yes

Freeze Resistant Movement No

Gauge Accuracy +/-1.00%

Gauge Application Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions

Gauge Case Color Stainless Steel

Gauge Case Liquid None

Gauge Case Material 304 Stainless Steel

Gauge Connection Location Lower Back

Gauge Connection Size 1/4 in

Gauge Connection Type MNPT

Gauge Lens Material Polycarbonate

Gauge Nominal Dial Size 2 1/2 in

Gauge Panel Mountable No

Gauge Primary Range Smallest Graduation 1/1

Gauge Primary Range Units in Hg/psi

Gauge Primary Range Values -30 to 0 to 30

Gauge Sensor Material 316 Stainless Steel

Gauge Socket Material 316 Stainless Steel

Gauge Special Options PLUS!(TM) Performance

Graduations 10 in Hg, 5 psi

Hazardous Location Rating Not Rated

Includes Mini Diaphragm Seal

Includes Calibration Certificate No

Includes Mounting Hardware No

Includes Vent Plug Yes

IP/NEMA Rating IP54 (Plug vented), IP65 (Plug closed), NEMA 4 (Plug closed)

Length 2.41

Lens Material Polycarbonate

Liquid Filled No

Liquid-Filled Case No

Manufacturer Warranty Length 5 yr

Manufacturers Warranty Length 5 yr

Material 304 Stainless steel

Max. Pressure (PSI) 30

Movement Material 304 Stainless Steel

Movement Type Glass Filled Polyester Segment

Nominal Dial Size 2 1/2 in

Operating Temp. Range -40 Degrees to 150 Degrees F

Package Quantity 1

Panel-Mountable No

Pointer Color Black

Pointer Material Aluminum

Pressure and Vacuum Gauge Type Compound Gauge

Pressure Gauge Type Industrial Pressure Gauge with Diaphragm Seal

Pressure Range 30 to 0 to 30 in Hg/psi

Pressure Range Type Compound

Primary Pressure Range 30 to 0 to 30

Primary Pressure Scale Color Black

Primary Scale Minor Graduations 1

Primary Scale Units in Hg/psi

Process Connection 1/4 in NPT Female

Process Connection Gender Female

Process Connection Location Lower Back

Process Connection Size 1/4 in

Process Connection Type NPT

Process Temperature Range -40 Degrees to 250 Degrees F

Range 30 in Hg Vac to 30 psi

Removable Bezel No

Scale Type Complex

Seal Compatible Process Media Water; Oil; Natural Gas and Other Combustible Gases; Liquids and Gases Compatible with Brass; Liquids and Gases Compatible with Stainless Steel; Potable Water

Seal Diaphragm Material 316L Stainless Steel

Seal External Material 316L Stainless Steel

Seal Fill Liquid Glycerin

Seal Lower Housing Material 316L Stainless Steel

Seal Maximum Working Pressure 2,500 psi

Seal Process Temperature Range 0 Degrees to 400 Degrees F

Sensor Material 316L Stainless Steel

Sensor Type Bourdon Tube

Series 1009; 310-315

Smallest Graduation 1 in Hg, 1 psi

Socket Material Aluminum Bronze

Standards RoHS
