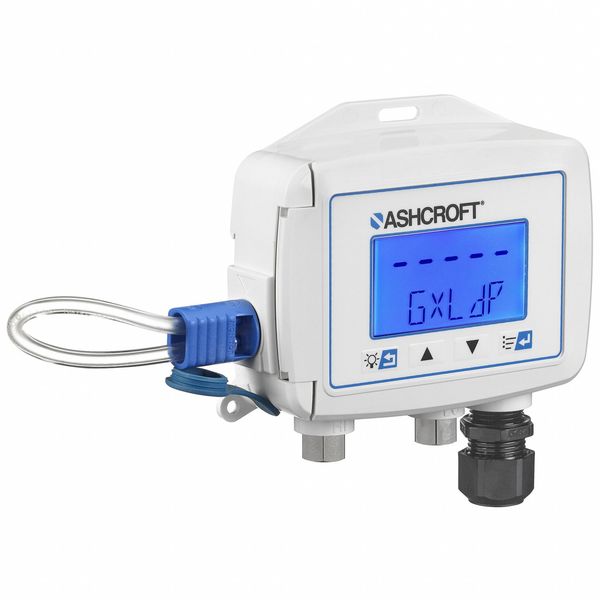

Indicating Differential Transmitter, LCD

SKU
Brand Ashcroft
Categories
Description Indicating Differential Transmitter, Output 4 to 20mA DC, Maximum Pressure 25 psi, Minimum Pressure 15 psi, Overpressure 15 psid, Accuracy +/-0.25 Percent of Span, Number of Wires 3, Power Required 12 to 40V DC, Process Connection Size 1/8 in, 3/16 in, 1/4 in, Process Connection Type Barbed; NPT, Process Connection Gender Female, Male, IP Rating IP67, NEMA Rating NEMA 4, Series GXLdp, Wiring Entry 1/2 NPT Female; Cable Gland, Electrical Connections Terminal Block, NIST Traceable Certificate Yes

Web Price

$834.99 / each

Qty

Product Details

Accuracy +/-0.25% of Span

Burst Pressure 25 psid

Connection Location Right Side

Country of Origin (subject to change) United States

Display Screen Type LCD

Display Type Digital

Display Units psi

Electrical Connections Terminal Block

Enclosure Rating IP67 ; NEMA 4

Explosion/Fire Proof Yes

Features Adjustable Display Response Time, Excellent Over-Pressure Protection, Field Selectable Outputs, the Exclusive Patented Ashcroft Spool Cal Actuator, TruAccuracyTM performance, Two Programmable Switch Outputs, NPN or PNP

Fitting Material Brass

For Use With Media Type Air, Gas

Housing Height 4 1/16 in

Housing Length 5 7/16 in

Housing Material ABS

IP Rating IP67

Manufacturer Warranty Length 3 yr

Maximum Loop Resistance 545 Ohm Max

Maximum Operating Temperature 158 Degrees F

Maximum Pressure 25 psi

Minimum Operating Temperature -4 Degrees F

Minimum Pressure 15 psi

NEMA Rating NEMA 4

NIST Traceable Certificate Yes

Number of Wires 3

Output 4 to 20mA DC

Overall Height 5.14 in

Overall Length 5.93 in

Overall Width 1.67 in

Overpressure 15 psid

Package Quantity 1

Power Required 12 to 40V DC

Pressure Range 15 psi to 25 psi

Pressure Units psi

Primary Scale Range +/-15 Pa to +/-5 kPa

Primary Scale Units kPa

Process Connection 1/4 in Female Barbed; NPT, 1/8 in Female Barbed; NPT, 1/8 in Male Barbed; NPT, 3/16 in Female Barbed; NPT, 3/16 in Male Barbed; NPT

Process Connection Gender Female, Male

Process Connection Size 1/8 in, 3/16 in, 1/4 in

Process Connection Type Barbed; NPT

Secondary Pressure Range 25 Pa to 6 kPa

Secondary Scale Units kPa

Series GXLdp

Shape Rectangular

Standards CE

Storage Temperature Range -22 Degrees to 158 Degrees F

Thermal Error +/-0.03% Degrees F

Weight 0.8 lb

Wetted Materials Aluminum, Buna-N, Glass, Gold, PBT, Silicon, Silicone RTV & Brass, Silicone Rubber, Titanium
