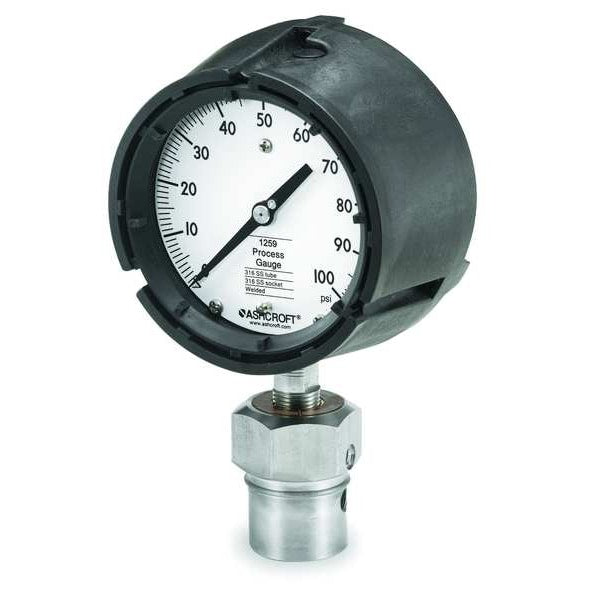

Pressure Gauge, 0 to 100 psi, 1/2 in FNPT, Plastic, Black

SKU
Brand Ashcroft
Categories
Description Pressure Gauge,4-1/2" Nominal Size
graingerSKU: 2AFX1, mscSKU: , zoro_no: G2832934, mongo_id: 65bbe8a222d7a989a9907aa6

Web Price

$269.99 / each

Qty

Product Details

Accuracy +/-1.00%

Accuracy Grade ASME B40.100 Grade 2A

Accuracy Scale Full Scale

Adjustable Pointer Micrometer Adjustable

Ambient Operating Temperature Range -20 Degrees to 200 Degrees F, -29 Degrees to 93 Degrees C (Dry)

Application Industrial, Process Industries

Basic Gauge Case Material Plastic

Basic Gauge Lens Material Glass

Basic Gauge Sensor Material Stainless Steel

Basic Gauge Socket Material Stainless Steel

Basic Gauge Wetted Parts Stainless Steel

Bezel Mounting Type No Bezel

Blowout Safety Back Yes

Bolt Circle Diameter 5.37 in

Burst Pressure 1,100 psi

Calibration Certificate Included No

Case Color Black

Case Construction Solid Front with Pressure Relief Back

Case Depth 3.36 in

Case Diameter 5.81 in

Case Material Plastic

Characteristics Glycerin Filled Seal

Cleaned for Oxygen Service No

Clog Resistant No

Color Black

Connection Location Lower

Connection Size 1/2 in FNPT

Country of Origin (subject to change) Brazil

Dial Color White

Dial Size (In.) 4-1/2

Diameter 5.81

Diaphragm Seal Process Connection Threaded

Diaphragm Seal Type Welded

Dry Dampening Feature None

Field Fillable Yes

Freeze Resistant Movement No

Gauge Accuracy +/-0.50%

Gauge Application Refineries, Chemical, Petrochemical Plants and Offshore Oil Rigs, Water and wastewater Pressure Control, Pulp and Paper, Mining and Metals, Equipment Skids, Specialized OEM Equipment

Gauge Case Color Black

Gauge Case Liquid None

Gauge Case Material PBT

Gauge Connection Location Bottom

Gauge Connection Size 1/2 in

Gauge Connection Type FNPT

Gauge Lens Material Glass

Gauge Mounting Method Surface

Gauge Nominal Dial Size 4 1/2 in

Gauge Panel Mountable Yes

Gauge Primary Range Numbered Graduations 10

Gauge Primary Range Smallest Graduation 1

Gauge Primary Range Units psi

Gauge Primary Range Values 0 to 100

Gauge Sensor Material 316 Stainless Steel

Gauge Socket Material 316 Stainless Steel

Graduations 10 psi

Hazardous Location Rating Not Rated

Includes 316 Stainless Steal Seal with Flushing Connection

Includes Calibration Certificate No

Includes Mounting Hardware No

Includes Vent Plug No

IP/NEMA Rating IP66

Lens Material Acrylic

Liquid Filled No

Liquid-Filled Case No

Material PBT/316 Stainless Steal

Max. Pressure (PSI) 100

Movement Type Adjustable

Nominal Dial Size 4 1/2 in

Operating Temp. Range 0 Degrees to 150 Degrees F

Package Quantity 1

Panel Mount Characteristics 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle

Panel-Mountable No

Pointer Characteristics Aluminum Micrometer Adjustable

Pointer Material Aluminum

Pressure and Vacuum Gauge Type Pressure Gauge

Pressure Gauge Type Process Pressure Gauge with Diaphragm Seal

Pressure Range 0 to 100 psi

Pressure Range Type Pressure

Primary Pressure Range 0 to 100

Primary Scale Minor Graduations 1

Primary Scale Numeric Increments 10

Primary Scale Units psi

Process Connection 1/2 in NPT Male

Process Connection Gender Male

Process Connection Location Bottom

Process Connection Size 1/2 in

Process Connection Type NPT

Process Temperature Range -20 Degrees to 250 Degrees F

Range 0 to 100 psi

Removable Bezel No

Scale Type Single

Seal Compatible Process Media Water; Oil; Natural Gas and Other Combustible Gases; Liquids and Gases Compatible with Brass; Liquids and Gases Compatible with Stainless Steel; Potable Water

Seal Connection Size 1/2 in

Seal Diaphragm Material 316L Stainless Steel

Seal External Material 316L Stainless Steel

Seal Fill Liquid Glycerin

Seal Lower Housing Material 316L Stainless Steel

Seal Maximum Working Pressure 1,000 psi

Seal Process Temperature Range -70 Degrees to 300 Degrees F

Sensor Material 316L Stainless Steel

Sensor Type Bourdon Tube

Series 1259; 311-312

Smallest Graduation 1 psi

Socket Material 316L Stainless Steel
