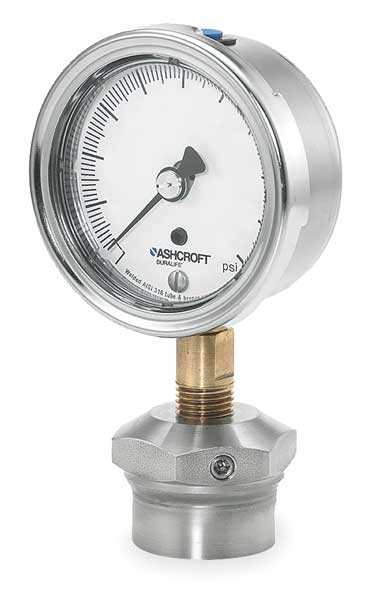

Pressure Gauge, 0 to 600 psi, 1/4 in MNPT, Stainless Steel, Silver

SKU
Brand Ashcroft
Categories
Description Pressure Gauge, Gauge Type With Mini Diaphragm Seal, Dial Size (In.) 2-1/2, Range 0 to 600 psi, Connection Size 1/4" NPT, Connection Location Lower, Smallest Graduation (PSI) 10, Accuracy (%) +/-1, Case Material Polished Stainless Steel, Socket Material Brass, Tube Material 316 Stainless Steel, Filled With Glycerin (In Seal), Lens Material Polycarbonate, Ring Material Polished Stainless Steel, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Series 1009AW With Mini Seal, Warranty Length
graingerSKU: 2C565, mscSKU: , zoro_no: G0029601, mongo_id: 65bbe7883aaddbd5a909ef57

Web Price

$208.74 / each

Qty

Product Details

Accuracy +/-1.50%

Accuracy Grade ASME B40.100 Grade 1A

Accuracy Scale Full Scale

Adjustable Pointer No

Ambient Operating Temperature Range -40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C

Application Industrial, Autoclave

Basic Gauge Case Material Stainless Steel

Basic Gauge Lens Material Plastic

Basic Gauge Sensor Material Stainless Steel

Basic Gauge Socket Material Brass

Basic Gauge Wetted Parts Brass / Stainless Steel

Blowout Safety Back No

Burst Pressure 2,000 psi

Calibration Certificate Included No

Case Color Stainless Steel

Case Construction Welded

Case Depth 1.25 in

Case Diameter 2.75 in

Case Material Stainless Steel

Cleaned for Oxygen Service No

Clog Resistant No

Color Silver

Connection Location Lower

Connection Size 1/4 in NPT

Country of Origin (subject to change) United States

Dial Color White

Dial Size (In.) 2-1/2

Diameter 2-3/4

Diaphragm Seal Process Connection Threaded

Diaphragm Seal Type Welded

Dry Dampening Feature None

Field Fillable Yes

Freeze Resistant Movement No

Gauge Accuracy +/-1.00%

Gauge Application Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions

Gauge Case Color Stainless Steel

Gauge Case Liquid None

Gauge Case Material 304 Stainless Steel

Gauge Connection Location Bottom

Gauge Connection Size 1/4 in

Gauge Connection Type MNPT

Gauge Filled With Glycerin

Gauge Lens Material Polycarbonate

Gauge Nominal Dial Size 2 1/2 in

Gauge Panel Mountable No

Gauge Primary Range Numbered Graduations 50

Gauge Primary Range Smallest Graduation 10

Gauge Primary Range Units psi

Gauge Primary Range Values 0 to 600

Gauge Sensor Material 316 Stainless Steel

Gauge Socket Material Brass

Gauge Special Options PLUS!(TM) Performance

Graduations 50 psi

Hazardous Location Rating Not Rated

Includes Mini Diaphragm Seal

Includes Calibration Certificate No

Includes Mounting Hardware No

Includes Vent Plug Yes

IP/NEMA Rating IP54 (Plug vented), IP65 (Plug closed), NEMA 4 (Plug closed)

Lens Material Polycarbonate

Liquid Filled Yes

Liquid-Filled Case No

Material 304 Stainless steel

Max. Pressure (PSI) 600

Movement Material 304 Stainless Steel

Movement Type Glass Filled Polyester Segment

Nominal Dial Size 2 1/2 in

Operating Temp. Range -40 Degrees to 150 Degrees F

Package Quantity 1

Panel-Mountable No

Pointer Color Black

Pointer Material Aluminum

Pressure and Vacuum Gauge Type Pressure Gauge

Pressure Gauge Type Industrial Pressure Gauge with Diaphragm Seal

Pressure Range 0 to 600 psi

Pressure Range Type Pressure

Primary Pressure Range 0 to 600

Primary Pressure Scale Color Black

Primary Scale Minor Graduations 10

Primary Scale Numeric Increments 50

Primary Scale Units psi

Process Connection 1/4 in NPT Male

Process Connection Gender Male

Process Connection Location Bottom

Process Connection Size 1/4 in

Process Connection Type NPT

Process Temperature Range -40 Degrees to 250 Degrees F

Range 0 to 600 psi

Removable Bezel No

Scale Type Single

Seal Compatible Process Media Water; Oil; Natural Gas and Other Combustible Gases; Liquids and Gases Compatible with Brass; Liquids and Gases Compatible with Stainless Steel; Potable Water

Seal Diaphragm Material 316L Stainless Steel

Seal External Material 316L Stainless Steel

Seal Fill Liquid Glycerin

Seal Lower Housing Material 316L Stainless Steel

Seal Maximum Working Pressure 2,500 psi

Seal Process Temperature Range 0 Degrees to 400 Degrees F

Sensor Material 316L Stainless Steel

Sensor Type Bourdon Tube

Series 1009; 310-315

Smallest Graduation 10 psi

Socket Material Aluminum Bronze

Standards CRN Registered, RoHS
