Home / Coiled Air Hose, 1/4" ID x 20 ft.

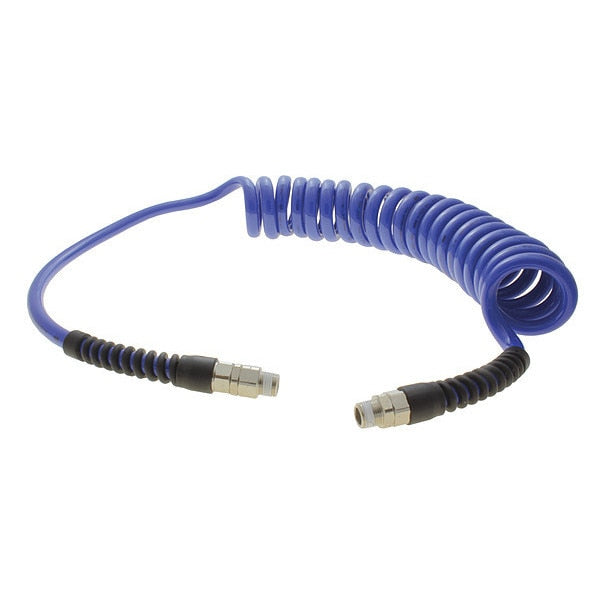

Coiled Air Hose, 1/4" ID x 20 ft.

SKU
Brand Atp
Categories
Description Coiled Air Hose Assembly, Hose Inside Dia. 1/4 in, Hose Outside Dia. 3/8 in, Hose Length 20 ft, Pigtail Length 20 in, Compressed Length 3 ft 9 in, Hose Color Navy Blue, Hose Tube Material Polyurethane, Hose Cover Material Polyurethane, Burst Pressure 420 psi, Max. Working Pressure @ 70 F 140 psi, Temp. Range -68 Degrees to 140 Degrees F, Hose Reinforcement Type Not Reinforced, Hose Reinforcement Material Not Reinforced, Safety Factor 3:1, Hose Fitting A Material Brass

Web Price

$121.49 / each

Qty

Product Details

Bend Radius 1/2

Burst Pressure 420 psi

Compatible Chemicals Air, Fresh Water

Compressed Length 3 ft 9 in

Country of Origin (subject to change) United States

Fitting Material Brass x Brass

Fitting Size 1/4 in x 1/4 in

Fitting Type MNPT x F Safety Twist Industrial Interchange Coupler

For Media Type Air, Water

Hose Color Navy Blue

Hose Configuration Coupled Assembly

Hose Cover Material Polyurethane

Hose Fitting A Material Brass

Hose Fitting A Size 1/4 in

Hose Fitting A Type MNPT

Hose Fitting B Material Brass

Hose Fitting B Size 1/4 in

Hose Fitting B Type MNPT

Hose Fittings Brass 1/4 in MNPT x Brass 1/4 in MNPT

Hose Inside Dia. 1/4 in

Hose Length 20 ft

Hose Outside Dia. 3/8 in

Hose Reinforcement Material Not Reinforced

Hose Strain Relief Yes

Hose Tube Material Polyurethane

Max. Working Pressure @ 70 F 140 psi

Not Recommended Chemicals Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene

Package Quantity 1

Pigtail Length 20 in

Safety Factor 3:1

Temp. Range -68 Degrees to 140 Degrees F
