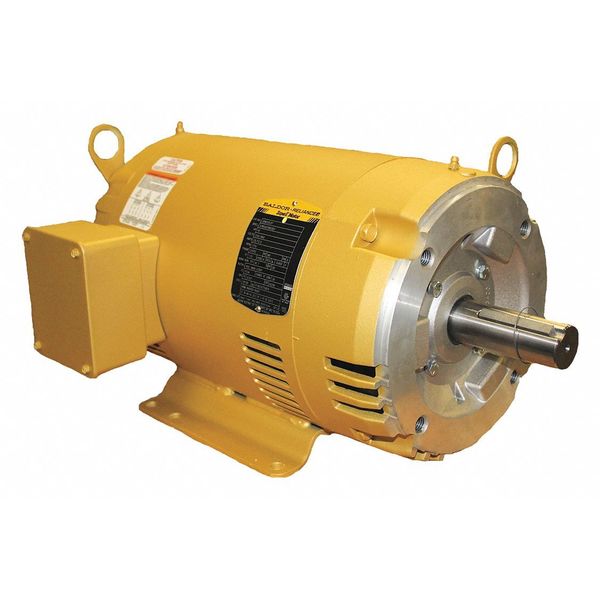

Home / 3-Phase General Purpose Motor, 10 HP, 213TC Frame, 208-230/460V AC Voltage, 3,475 Nameplate RPM
3-Phase General Purpose Motor, 10 HP, 213TC Frame, 208-230/460V AC Voltage, 3,475 Nameplate RPM

3-Phase General Purpose Motor, 10 HP, 213TC Frame, 208-230/460V AC Voltage, 3,475 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 3,475, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 24/12 A, 213TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle

    graingerSKU: 29AH73, mscSKU: , zoro_no: G8255204, mongo_id: 65bbee1c526e052139aee99a

Web Price
$2,757.49 / each
Qty

Product Details

No
CC010A
United States
Continuous
Continuous
1
213TC
Rolled steel
24/12 A
10 hp
60 Hz
Conduit Box
F
No
13 15/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Open Dripproof
Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
3,475
B
1
89.5 %
17 1/16 in
1
Three
3001-3600
3,001-3,600
1 3/8 in
3 3/16 in
CSA, CSA EEV, UR
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
121 lb
