Home / 3-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3,490 Nameplate RPM

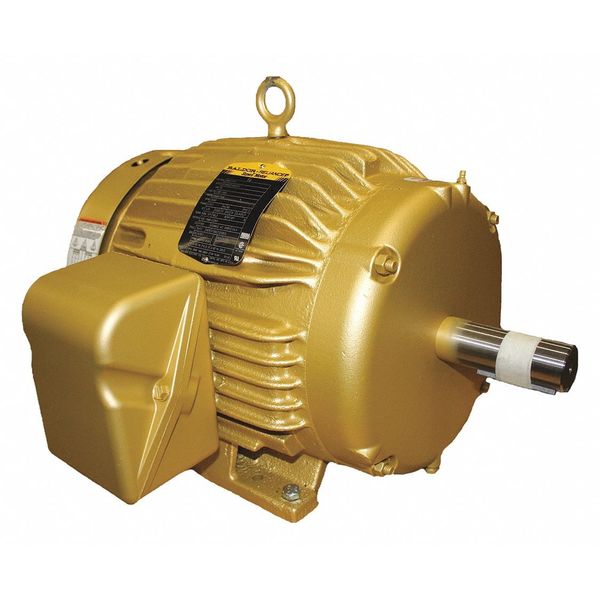

3-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3,490 Nameplate RPM

3-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3,490 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 3,490, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 23.6/11.8 A, 215T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39E484, mscSKU: , zoro_no: G8628532, mongo_id: 65bbe7f59a749db822768f2e

Web Price
$3,152.49 / each
Qty

Product Details

CC031A
United States
Continuous
Continuous
215T
Cast Iron
23.6/11.8 A
NEMA Premium(R) Rated
10 hp
60 Hz
F
Yes
15 1/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
3,490
B
1
90.2 %
18 7/16 in
1
Three
3001-3600
3,001-3,600
1 3/8 in
3 3/8 in
CSA, CSA EEV, UR
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
185 lb
