Home / 3-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1,750 Nameplate RPM

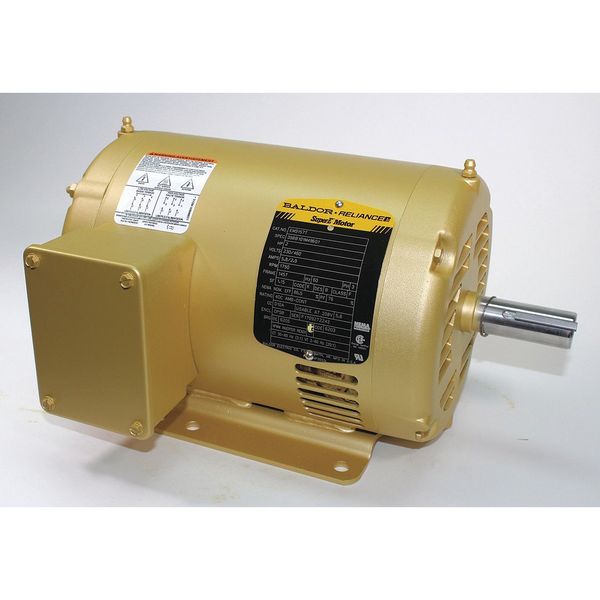

3-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1,750 Nameplate RPM

3-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1,750 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle

    graingerSKU: 39E428, mscSKU: , zoro_no: G5145366, mongo_id: 65bbee41526e052139afcf05

Web Price
$1,314.99 / each
Qty

Product Details

CC010A
United States
Continuous
Continuous
145T
Steel
5.8/2.9 A
NEMA Premium(R) Rated
2 hp
60 Hz
Conduit Box
F
Yes
9 7/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,750
B
1
86.5 %
12 1/8 in
1
Three
1701-1800
1,701-1,800
7/8 in
2 1/4 in
CSA, CSA EEV, UR
No
Yes
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
49 lb
