Home / 3-Phase General Purpose Motor, 3 HP, 213T Frame, 208-230/460V AC Voltage, 1,165 Nameplate RPM

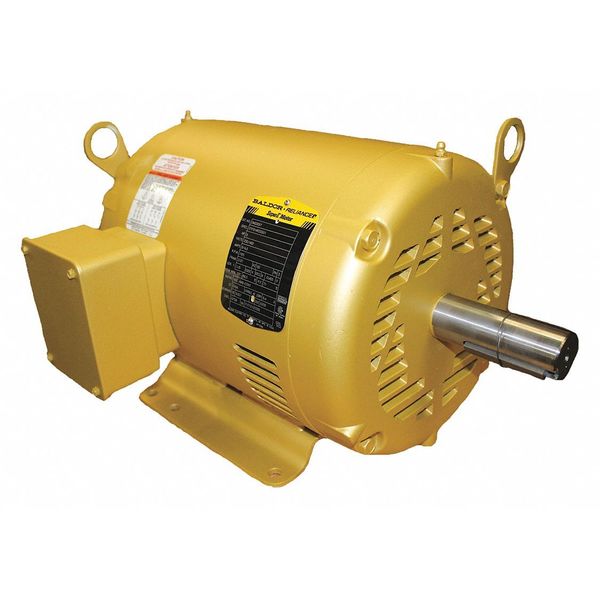

3-Phase General Purpose Motor, 3 HP, 213T Frame, 208-230/460V AC Voltage, 1,165 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 213T Frame, 208-230/460V AC Voltage, 1,165 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 1,165, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 9/4.5 A, 213T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle

    graingerSKU: 39E438, mscSKU: , zoro_no: G7866311, mongo_id: 65bbe7a79a749db82274c44f

Web Price
$1,736.24 / each
Qty

Product Details

CC010A
United States
Continuous
Continuous
213T
Steel
9/4.5 A
NEMA Premium(R) Rated
3 hp
60 Hz
Conduit Box
F
Yes
12 15/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,165
B
1
88.5 %
16 5/16 in
1
Three
1101-1200
1,101-1,200
1 3/8 in
3 3/8 in
CSA, CSA EEV, UR
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
114 lb
