Home / 3-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1,160 Nameplate RPM

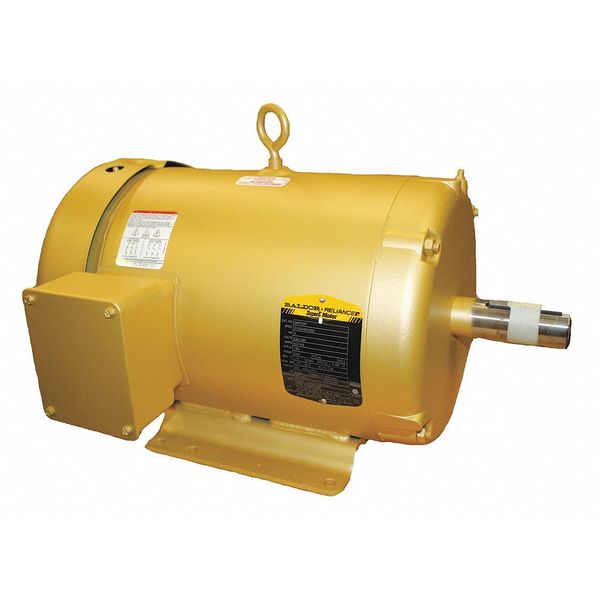

3-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1,160 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1,160 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 9.2/4.6 A, 213T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle

    graingerSKU: 39E474, mscSKU: , zoro_no: G7989861, mongo_id: 65bbea6b22d7a989a99b2783

Web Price
$2,546.24 / each
Qty

Product Details

CC031A
United States
Continuous
Continuous
213T
Steel
9.2/4.6 A
NEMA Premium(R) Rated
3 hp
60 Hz
F
Yes
15 5/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,160
B
1
89.5 %
19 in
1
Three
1101-1200
1,101-1,200
1 3/8 in
3 3/8 in
CSA, CSA EEV, UR
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
118 lb
