Home / 3-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 3,475 Nameplate RPM

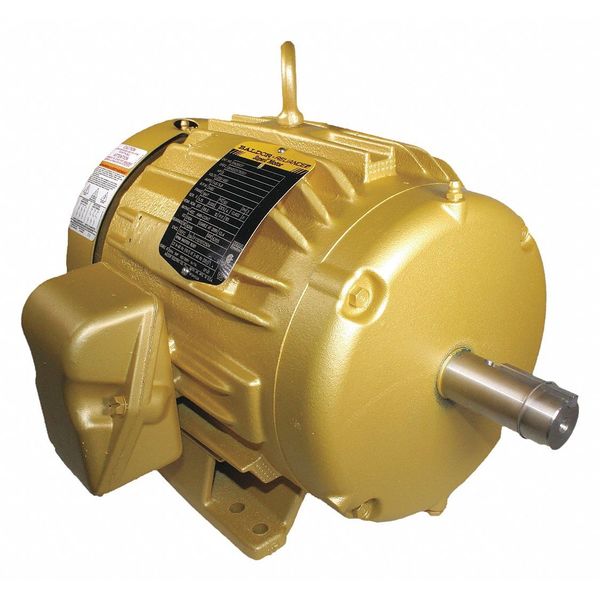

3-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 3,475 Nameplate RPM

3-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 3,475 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 3,475, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 11.6/5.8 A, 184T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39E471, mscSKU: , zoro_no: G8379777, mongo_id: 65bbe9ec22d7a989a9987758

Web Price
$2,108.74 / each
Qty

Product Details

CC031A
United States
Continuous
Continuous
184T
Cast Iron
11.6/5.8 A
NEMA Premium(R) Rated
5
60 Hz
F
No
12 1/2 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
3,475
B
1
88.5 %
15 1/4 in
1
Three
3001-3600
3,001-3,600
1 1/8 in
2 3/4 in
CSA, CSA EEV, UR
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
100 lb
