Home / 3-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM

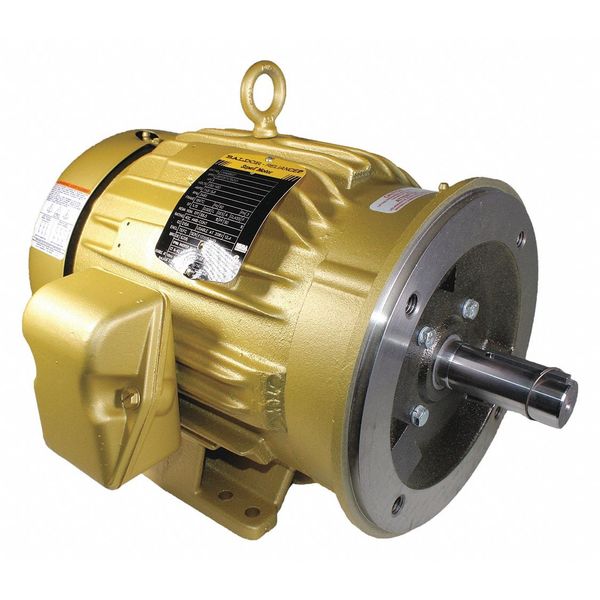

3-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM

3-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.2/6 A, 184TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal

    graingerSKU: 29UX50, mscSKU: , zoro_no: G7861497, mongo_id: 65bbe98022d7a989a995c4b4

Web Price
$2,027.49 / each
Qty

Product Details

No
CC010A
United States
Continuous
Continuous
1
184TC
Cast Iron
13.2/6 A
NEMA Premium(R) Rated
5
60 Hz
Conduit Box
F
Yes
13 1/4 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Face
1.15
Keyed
CW/CCW
None
1,750
B
1
89.5 %
16 in
1
Three
1701-1800
1,701-1,800
1 1/8 in
2 3/4 in
CSA, CSA EEV, UR
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
117 lb
