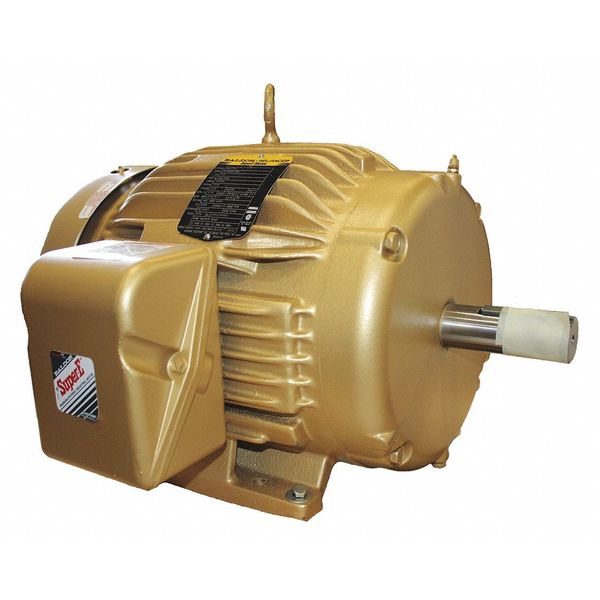

3-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

3-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Baldor-Reliance
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 19/9.5 A, 213T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39E483, mscSKU: , zoro_no: G8628523, mongo_id: 65bbe82122d7a989a98db4fc

Web Price
$2,778.74 / each
Qty

Product Details

CC031A
United States
Continuous
Continuous
213T
Cast Iron
19/9.5 A
NEMA Premium(R) Rated
7 1/2 hp
60 Hz
F
Yes
15 1/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,770
A
1
91.7 %
18 7/16 in
1
Three
1701-1800
1,701-1,800
1 3/8 in
3 3/8 in
CSA, CSA EEV, UR
No
Yes
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
176 lb
