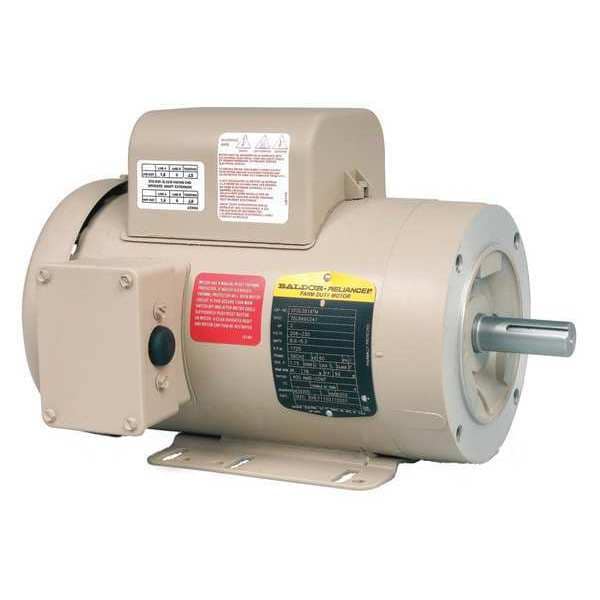

Motor, 2HP, 1740rpm, 1PH, 60Hz, 56CHZ, TEFC

SKU
Brand Baldor-Reliance
Categories
Description AC Induction Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 7.9/8.9 A, 56CHZ Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: , mscSKU: , zoro_no: G7128226, mongo_id: 65bbe8c222d7a989a991488d

Web Price

$1,709.60 / each

Qty

Product Details

CC Number CC031A

Country of Origin (subject to change) United States

Duty Cycle Continuous

Frame 56CHZ

Full Load Amps 7.9/8.9 A

HP_ 2 hp

Hz_ 60 Hz

Ins. Class F

Inverter Rated No

Length Less Shaft 12 1/4 in

Max. Ambient Temp. 40 Degrees C

Motor Application General Application

Motor Bearings Sealed

Motor Design Capacitor-Start

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Standard

Motor Shaft Rotation CCW

Motor Thermal Protection Manual

Nameplate RPM 1,740

NEMA Design L

No. of Speeds 1

Nominal Efficiency 82.5 %

Overall Length 14 1/8 in

Package Quantity 1

Part Winding Start Capable Yes

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 1 7/8 in

Standards CSA, UR

Usable @ 208V Yes

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
