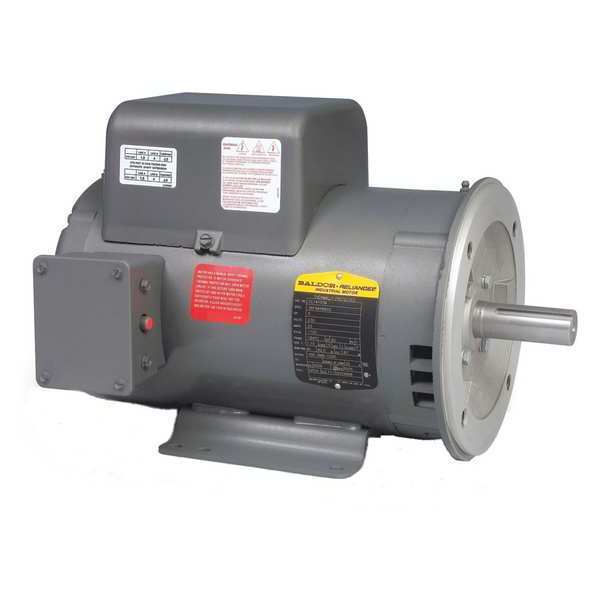

Motor, 5HP, 1725rpm, 1PH, 60Hz, 184TC, ODP

SKU
Brand Baldor-Reliance
Categories
Description AC Induction Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 23/25 A, 184TC Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No

Web Price

$2,271.24 / each

Qty

Product Details

CC Number CC031A

Country of Origin (subject to change) United States

Duty Cycle Continuous

Frame 184TC

Full Load Amps 23/25 A

HP_ 5 hp

Hz_ 60 Hz

Ins. Class F

Inverter Rated No

Length Less Shaft 13 7/8 in

Max. Ambient Temp. 40 Degrees C

Motor Application General Application

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Standard

Motor Shaft Rotation CCW

Motor Thermal Protection Manual

Nameplate RPM 1,725

NEMA Design L

No. of Speeds 1

Nominal Efficiency 82.5 %

Overall Length 16 1/2 in

Package Quantity 1

Part Winding Start Capable Yes

Phase Single

Removable Base Regreasable Bearings

RPM Range 1,701-1,800

Shaft Dia. 1 1/8 in

Shaft Length 2 5/8 in

Standards CSA, UR

Usable @ 208V Yes

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
