Home / Motor, Farm, 2 HP, 1740 rpm, 1-Phase

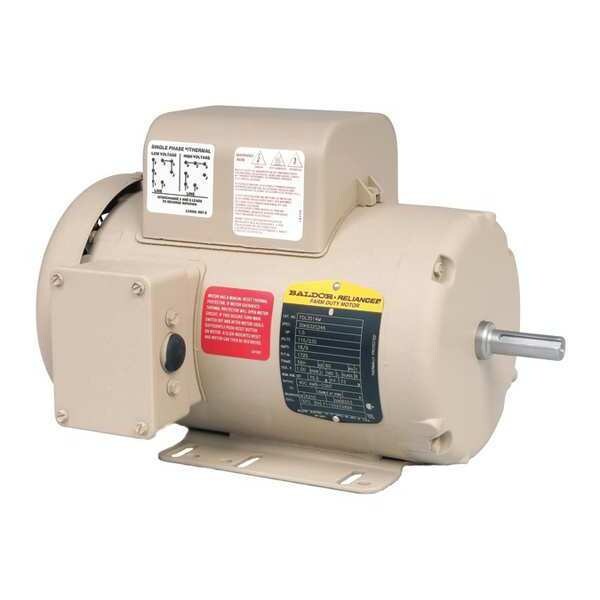

Motor, Farm, 2 HP, 1740 rpm, 1-Phase

SKU
Brand Baldor-Reliance
Categories
Description General Purpose Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 7.9 A, 56HZ Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
graingerSKU: , mscSKU: , zoro_no: G8052296, mongo_id: 65bbe6683aaddbd5a902b0cd

Web Price

$1,474.40 / each

Qty

Product Details

Capacitor Required Yes

Country of Origin (subject to change) United States

Duty Cycle Continuous

Extended Thru-Bolts No

Finish Painted

Frame 56HZ

Full Load Amps 7.9 A

Full Load Amps @ 50Hz 7.9

HP @ 50Hz 1.26

HP_ 2

Hz_ 60 Hz

Includes Manual Thermal Overload

Ins. Class F

Item - Farm Duty Motors General Purpose Farm Duty Motor

Length Less Shaft 11 15/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Motor Application Farm Duty

Motor Bearings Sealed

Motor Design Capacitor-Start/Run

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Standard

Motor Shaft Rotation Reversible

Motor Sub Application General Purpose

Motor Thermal Protection Manual

Mounting Stud Pattern 5 in x 4.88 in

Nameplate RPM 1,740

No. of Speeds 1

Nominal Efficiency 82.5 %

Overall Length 14 3/16 in

Package Quantity 1

Phase Single

RPM @ 50Hz 1440

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 2 1/4 in

Standards CSA, UR

Stud Size #8-32 x 1-3/8 in

Usable @ 200V Yes

Usable @ 208V Yes

Voltage 230V AC

Voltage @ 50Hz 115/208-230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 51 lb
