Home / Severe Duty Motor, 1 HP, 1765 rpm, 3-Phase

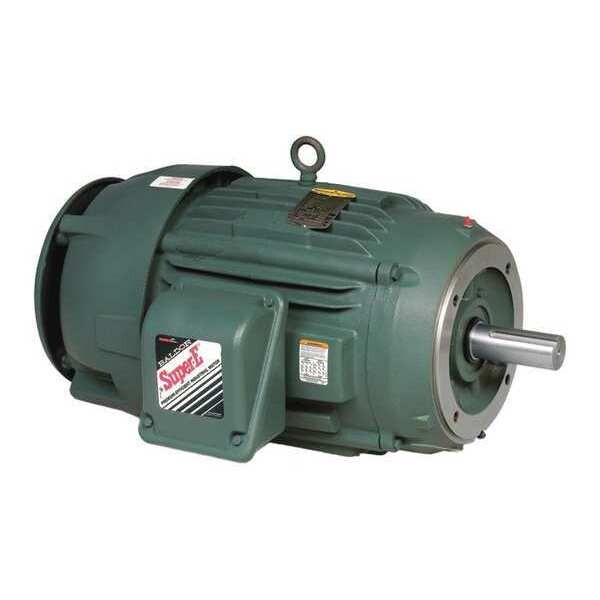

Severe Duty Motor, 1 HP, 1765 rpm, 3-Phase

SKU
Brand Baldor-Reliance
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.7 A, 143TC Frame, Usable @ 208V Yes, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class 1 A,B,C,D, Temp. Code T4, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Face, NEMA Design B, Motor Shaft Rotation Reversible
graingerSKU: , mscSKU: , zoro_no: G8053081, mongo_id: 65bbe6ae3aaddbd5a9047ae8

Web Price

$1,698.74 / each

Qty

Product Details

CC Number CC010A

Country of Origin (subject to change) United States

Duty Cycle Continuous

Frame 143TC

Full Load Amps 1.7 A

Hazardous Location Class 1 A,B,C,D

Hazardous Location Division Division 2

HP_ 1

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 12 7/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Iron

Motor Mounting Position Vertical

Motor Mounting Type Face

Motor Service Factor 1.15

Motor Shaft Design Standard

Motor Shaft Rotation Reversible

Motor Thermal Protection None

Nameplate RPM 1,770

NEMA Design B

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 14 9/16 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 2 1/8 in

Standards CCSA US, CSA EEVN, UR

Temp. Code T4

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
