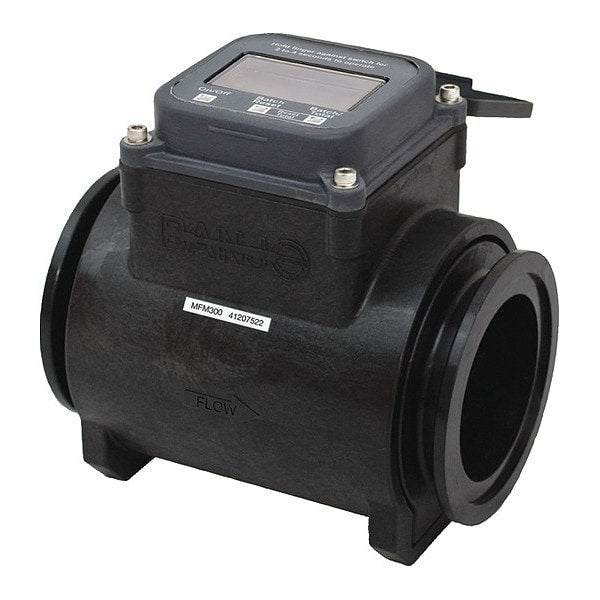

Manifold Flow Meter 3"

SKU
Brand Banjo
Categories
Description Manifold Flow Meter, Body Material Polypropylene, Body Style No Style, Pipe Size 3 in, Connection Type Flange, Full Port, Max. Pressure 200 psi, Temp. Range 0 Degrees to 150 Degrees F
graingerSKU: 367G76, mscSKU: , zoro_no: G7559321, mongo_id: 65bbe86b9a749db822790230

Web Price

$1,502.49 / each

Qty

Product Details

Body Material Polypropylene

Body Style No Style

Connection Type Flange

Country of Origin (subject to change) United States

Features +/-1% of Reading (Between 10% and 100% of Maximum Flow), +/-3% of Reading (Between Cutoff and 10% of Maximum Flow), Displays Overall Total Volume and Batch Total Volume, Easy to Change Six (6) AA Batteries, Flow Rate Allows for Gallons or Liters Per Minute, It is Recommended to Have at Least 10x the Diameter of Straight Pipe Before and After the Flow Meter, Measures Water and Most Conductive Liquids, No Moving Parts to Fail During Use, Self Calibrating Meter, The Display Reads 6 Digits for Rate, 8 Digits for Total and 1 Decimal Place Reading in Tenths, There are 3 Photoeyes Located on the Face of the Flowmeter. These are Not Push Buttons. to Activate Must Hold Finger Over the Photoeye for 2-4 Secs.

Max. Pressure 200 psi

Overall Length 7.28 in

Package Quantity 1

Pipe Size 3 in

Port Full

Product Type Flow Meter

Standards NEMA 4X

Temp. Range 0 Degrees to 150 Degrees F
