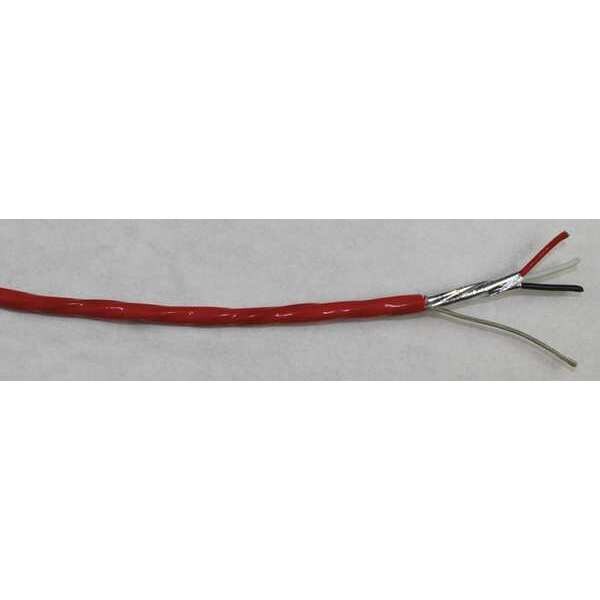

Multi-Conductor, 18 AWG, Red, 0.155 in.

SKU
Brand Belden
Categories
Description Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 18 AWG, Insulation Material FEP, Jacket Color Red, Jacket Material FEP, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 3, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Instrumentation Systems, Audio Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP, Number of Pairs 0, Product Type Communication Cable

Web Price

$6,489.99 / each

Qty

Product Details

Application Instrumentation Systems, Audio Systems

Application - Communication Cable Audio Systems, Control Systems, Instrumentation Systems

Bend Radius 1 5/8 in

Cable Length 1,000 ft

Cable Sub-Category Multi-Conductor

Conductor Gauge 18 AWG

Conductor Size 18 AWG

Conductor Size - Data Cable 18 AWG

Country of Origin (subject to change) United States

Fire Rating Commercial

Fire Rating - Data Cable Plenum

Insulation Material FEP

Item - Data Cable Communication Cable

Jacket Color Red

Jacket Material FEP

Jacket Material - Wire and Cable FEP

Length 1000 ft.

Maximum Capacitance 54.0 pf/ft (Nominal Capacitance Conductor to Conductor); 96.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))

Maximum Current 17 A

Maximum Impedance 7.1 ohm

Maximum Operating Temperature 302 Degrees F

Maximum Voltage Rating 300 V

Minimum Operating Temperature -4 Degrees F

NEC Article 800

NEC Article and Type 800 CMP

Nominal Outside Dia. 0.155 in

Number of Conductors 3

Number of Pairs 0

Number of Strands 30

Outside Diameter 0.2 in

Package Quantity 1

Package Type Reel in a Box

Package Type - Data Cable Reel in a Box

Plenum / Riser Rated Plenum Rated

Product Type Communication Cable

Resistance Properties Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant

Shielded Shielded

Shielded / Unshielded Shielded

Shielding Material Foil

Solid / Stranded Stranded

Solid/Stranded Stranded

Spool Length 1,000 ft

Standards APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262, UL 910 (Plenum), IEC 60332-1-2, UKCA Mark

Suggested Voltage Rating - Data Cable 300 V

Temp. Range -94 Degrees to 392 Degrees F

Total Number of Conductors - Data Cable 3 (0 Pair)
