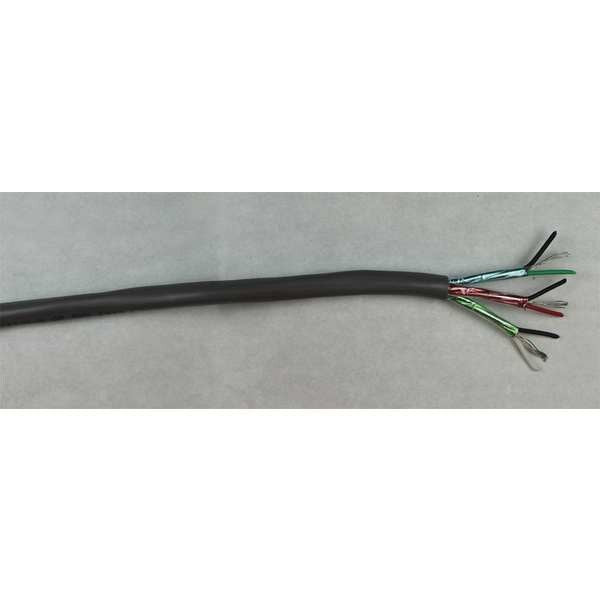

Multi-Conductor, 22 AWG, Silver, 0.273 in.

SKU
Brand Belden
Categories
Description Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 22 AWG, Insulation Material Plastic, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 6, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 3
graingerSKU: 48KR39, mscSKU: , zoro_no: G3724421, mongo_id: 65bbe6863aaddbd5a9037328

Web Price

$3,376.24 / each

Qty

Product Details

Application Computer Systems, Audio Systems, Instrumentation Systems

Application - Communication Cable Audio Systems, Control Systems, Instrumentation Systems

Bend Radius 2 3/4 in

Cable Length 1,000 ft

Cable Sub-Category Multi-Conductor

Color Code Gray (Slate)

Conductor Count 3 Pairs

Conductor Gauge 22 AWG

Conductor Size 22 AWG

Conductor Size - Data Cable 22 AWG

Conductor Type Stranded Conductor

Construction Indivl/Foil Side & Drain In

Country of Origin (subject to change) Mexico

Fire Rating Commercial

Fire Rating - Data Cable Commercial

Impedance 50 Ohm Nominal Impedance

Insulation Material Plastic

Item - Data Cable Communication Cable

Jacket Color Chrome

Jacket Material PVC

Jacket Material - Wire and Cable PVC

Jacketing Material Pvc-Polyvinyl Chloride

Length 1000 ft.

Material Tinned Copper

Maximum Capacitance 30.0 pf/ft (Nominal Capacitance Conductor to Conductor); 55.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))

Maximum Current 2.8 A

Maximum Impedance 50 ohm

Maximum Operating Temperature 176 Degrees F

Maximum Voltage Rating 300 V

Minimum Operating Temperature -4 Degrees F

NEC Article 800

NEC Article and Type 800 CM

NEC Rating UL LISTED ART 800

Nominal Outside Dia. 0.273 in

Number of Conductors 6

Number of Pairs 3

Number of Strands 30

Outside Diameter 0.3 in

Package Quantity 1

Package Type Reel in a Box

Package Type - Data Cable Reel in a Box

Plenum General Purpose

Plenum / Riser Rated Riser Rated

Product Type Communication Cable

Resistance Properties Flame/Fire Resistant

Screen/Shield Yes

Shield Type Foil Shielded - Alum/Mylar

Shielded Shielded

Shielded / Unshielded Shielded

Shielding Material Foil

Solid / Stranded Stranded

Solid/Stranded Stranded

Spec Nbr Ul Style UL STYLE, 2919

Spool Length 1,000 ft

Standards APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2919, CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 FT4 Loading, IEC 60332-1-2

Suggested Voltage Rating - Data Cable 300 V

Temp. Range -4 Degrees to 176 Degrees F

Temperature Rating 80 Degrees Centigrade

Total Number of Conductors - Data Cable 6 (3 Pair)

Voltage Rating 30 Volts AC
