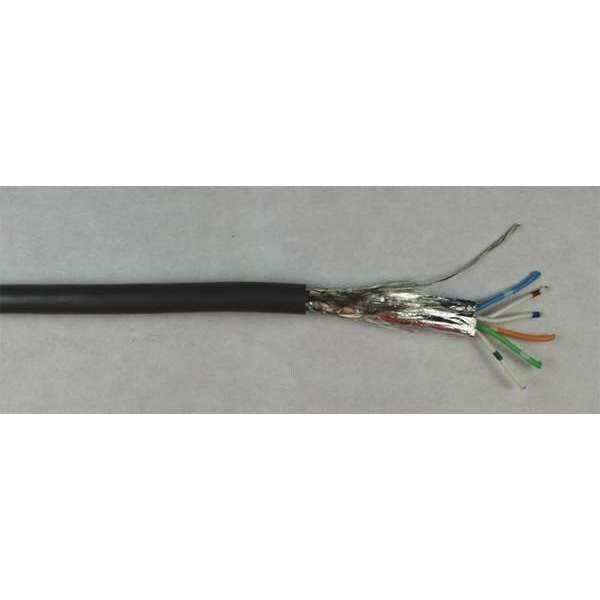

Multi-Conductor, 24 AWG, Silver, 0.283 in.

SKU
Brand Belden
Categories
Description Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 32, Conductor Gauge 24 AWG, Insulation Material Foam, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Tinned Copper Braid, Solid/Stranded Stranded, Number of Conductors 6, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 3
graingerSKU: 48KR17, mscSKU: , zoro_no: G3724589, mongo_id: 65bbe8479a749db822783a38

Web Price

$4,956.24 / each

Qty

Product Details

Application Computer Systems, Audio Systems, Instrumentation Systems

Application - Communication Cable Computer Systems

Bend Radius 2 3/4 in

Cable Length 1,000 ft

Cable Sub-Category Multi-Conductor

Color Code Gray (Slate)

Conductor Count 3 Pairs

Conductor Gauge 24 AWG

Conductor Size 24 AWG

Conductor Size - Data Cable 24 AWG

Conductor Type Stranded Conductor

Construction Special Construction

Country of Origin (subject to change) United States

Fire Rating Commercial

Fire Rating - Data Cable Commercial

Impedance 100 Ohm Nominal Impedance

Insulation Material Foam

Item - Data Cable Communication Cable

Jacket Color Chrome

Jacket Material PVC

Jacket Material - Wire and Cable PVC

Jacketing Material Pvc-Polyvinyl Chloride

Length 1000 ft.

Material Tinned Copper

Maximum Capacitance 12.5 pf/ft (Nominal Capacitance Conductor to Conductor); 22.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))

Maximum Current 1.5 A

Maximum Impedance 100 ohm

Maximum Operating Temperature 176 Degrees F

Maximum Voltage Rating 300 V

Minimum Operating Temperature -22 Degrees F

NEC Article and Type 800 CM

NEC Rating UL LISTED ART 800

Nominal Outside Dia. 0.283 in

Number of Conductors 6

Number of Pairs 3

Number of Strands 32

Outside Diameter 0.3 in

Package Quantity 1

Package Type Reel in a Box

Package Type - Data Cable Reel in a Box

Plenum General Purpose

Plenum / Riser Rated Riser Rated

Product Type Communication Cable

Resistance Properties Impact Resistant, Flame/Fire Resistant

Screen/Shield Yes

Shield Type Braid Over Foil Shield

Shielded Shielded

Shielded / Unshielded Shielded

Shielding Material Tinned Copper Braid

Solid / Stranded Stranded

Solid/Stranded Stranded

Spec Nbr Ul Style UL STYLE, 2919

Spool Length 1,000 ft

Standards APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2919, CEC / C(UL) Compliance-CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 FT4 Loading, IEC 60332-1-2

Suggested Voltage Rating - Data Cable 300 V

Temp. Range -22 Degrees to 176 Degrees F

Temperature Rating 80 Degrees Centigrade

Total Number of Conductors - Data Cable 6 (3 Pair)

Voltage Rating 30 Volts AC
