Home / Actuator, Damper, 30 in-lb, 120V AC

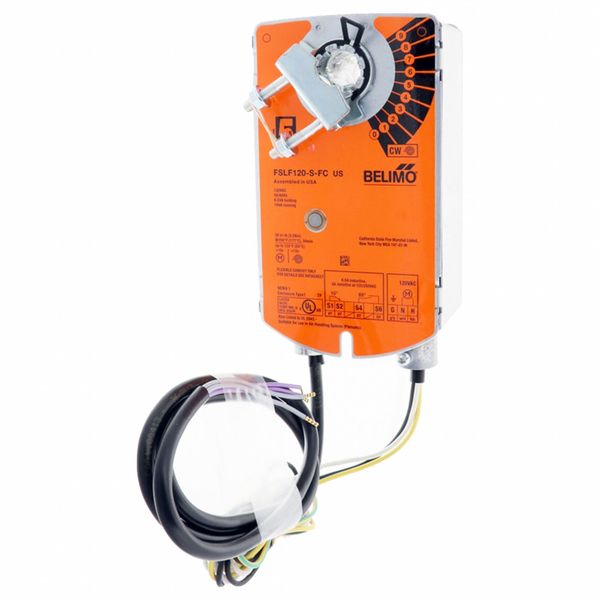

Actuator, Damper, 30 in-lb, 120V AC

SKU
Brand Belimo
Categories
Description Actuator, Valve Application Damper, Signal Type Floating Point, Rated Torque 30 in-lb, Input Voltage 120V AC, Output Signal Not Applicable, Contact Form SPST, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP30, Spring Return Spring Return, Smoke Application Rating Smoke Application Rated, Fire Application Rating Fire Application Rated, Time to Close 15 sec, Shaft Rotation CW/CCW

Web Price

$721.24 / each

Qty

Product Details

Contact Form SPST

Country of Origin (subject to change) United States

Electrical Connection Type Hardwired

Fire Application Rating Fire Application Rated

For Use With Building Automation Systems Building Automation System Compatible

Housing Material Steel

Housing Material Finish Galvanized

Includes 18 GA Appliance Cable, 1 m with 1/2 in Conduit Connector

Input Voltage 120V AC

IP Rating IP30

Maximum Operating Temperature 122 Degrees F

Minimum Operating Temperature 32 Degrees F

NEMA Rating 1

Number of Auxiliary Switches 2

Output Signal Not Applicable

Overall Depth 3 1/4 in

Overall Height 7 in

Overall Width 3 7/8 in

Package Quantity 1

Plenum Rating Plenum Rated

Power Consumption 18 VA

Power Rating 4W

Product Type Actuator

Rated Torque 30 in-lb

Shaft Rotation CW/CCW

Signal Type Floating Point

Smoke Application Rating Smoke Application Rated

Spring Return Spring Return

Standards C-UL-US Acc to UL60730-1A/-2-14, CAN/CSA E60730-1:02 NYC Department of Buildings MEA 197-07-M California State Fire Marshal Listing 3210-1593:102, ISO 9001

Time to Close 15 sec

Valve Application Damper

Weight 4.4 lb
