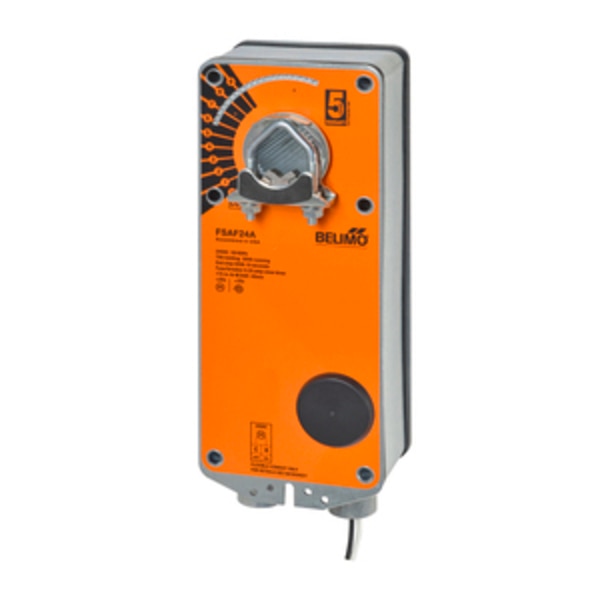

Fire & Smoke Actuator, Damper, 180 in-lb

SKU
Brand Belimo
Categories
Description Fire and Smoke Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 180 in-lb, Input Voltage 24V AC/DC, Electrical Connection Type Hardwired, NEMA Rating 1, IP Rating IP40, Spring Return Spring Return, Smoke Application Rating Smoke Application Rated, Fire Application Rating Fire Application Rated, Time to Close 25 sec, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F
graingerSKU: 349LZ4, mscSKU: , zoro_no: G1954411, mongo_id: 65bbe7d53aaddbd5a90bbaa0

Web Price

$686.24 / each

Qty

Product Details

Country of Origin (subject to change) United States

Electrical Connection Type Hardwired

Fire Application Rating Fire Application Rated

Housing Material Steel

Housing Material Finish Galvanized

Input Voltage 24V AC/DC

IP Rating IP40

Maximum Operating Temperature 122 Degrees F

Minimum Operating Temperature 32 Degrees F

NEMA Rating 1

Number of Auxiliary Switches 0

Overall Depth 3 1/2 in

Overall Height 10 1/4 in

Overall Width 3 7/8 in

Package Quantity 1

Plenum Rating Plenum Rated

Power Consumption 32 VA

Power Rating 5W

Product Type Fire and Smoke Actuator

Rated Torque 180 in-lb

Shaft Rotation CW/CCW

Signal Type On/Off

Smoke Application Rating Smoke Application Rated

Spring Return Spring Return

Standards CAN/CSA Certified E60730-1:02, cULus Listed to UL60730-1A:02, EU-Directive 2011/65/EU, ISO 9001, RoHS Compliant, UL Listed 2043, UL Listed 60730-2-14:02

Stroke Degree 95 Degrees

Time to Close 25 sec

Valve Application Damper

Weight 5.9 lb
