Home / Heat Exchanger, 20 Plates, 0.0159 Gal/Chnl

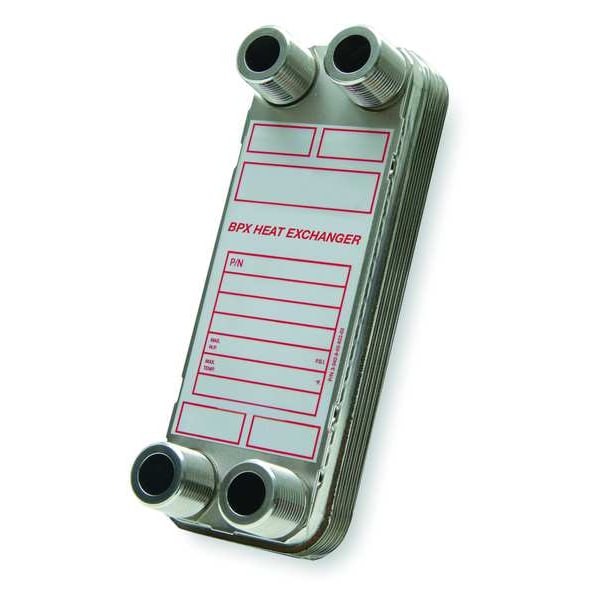

Heat Exchanger, 20 Plates, 0.0159 Gal/Chnl

Heat Exchanger, 20 Plates, 0.0159 Gal/Chnl

  • Bell & Gossett
  • Heat Exchanger, Heat Exchanger Type Braze Plate, Heat Dissipation Capacity for Water 45,000 BtuH, Heat Dissipation Capacity for Oil 17,000 BtuH, Total Surface Area 5.04 sq ft, Overall Height 12 1/4 in, Overall Width 4 3/8 in, Overall Depth 2 3/8 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -310 Degrees F, Flow Capacity 50 gpm, Pipe Connection Size 1 in, Channel Plate Material Stainless Steel

    graingerSKU: , mscSKU: , zoro_no: G2223873, mongo_id: 65bbe84c22d7a989a98eaf2a

Web Price
$1,091.24 / each
Qty

Product Details

ASME, CRN, UL
Liquid and Oil Cooling, Refrigerant Evaporators and Condensers, Residential Hydronic Systems
Copper
50 gpm
0.0757 L
Stainless Steel
316L
1 in MNPT
Stainless Steel
316L
ASTM 316L Stainless Steel, Copper
United States
Stainless Steel
316L
50 gpm
17,000 BtuH
45,000 BtuH
Braze Plate
12.2 in
2.34 in
45,000 BtuH
450 Degrees F
435 psig
-310 Degrees F
20
2 3/8 in
12 1/4 in
4 3/8 in
1
Male
1 in
NPT
20
435 PSIG Design
BPX
ASME, ASTM, CRN Certified, UL Listed
0.28 sq ft
0.281 sq ft
-40 to 300
5.04 sq ft
Brazed Plate
0.0159
8.4 lb
8.4 lb
4.37 in
