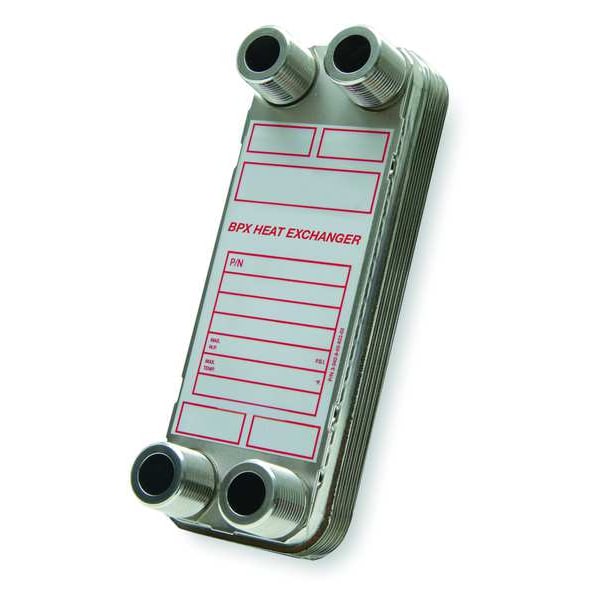

Heat Exchanger, 30 Plates, 0.0076 Gal/Chnl

Heat Exchanger, 30 Plates, 0.0076 Gal/Chnl

  • Bell & Gossett
  • Heat Exchanger, Heat Exchanger Type Braze Plate, Heat Dissipation Capacity for Water 225,000 BtuH, Heat Dissipation Capacity for Oil 31,900 BtuH, Total Surface Area 3.53 sq ft, Overall Height 8 1/4 in, Overall Width 3 1/8 in, Overall Depth 2 7/8 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -310 Degrees F, Flow Capacity 25 gpm, Pipe Connection Size 3/4 in, Channel Plate Material Stainless Steel

    graingerSKU: , mscSKU: , zoro_no: G2399756, mongo_id: 65bbe8a222d7a989a99079ea

Web Price
$786.24 / each
Qty

Product Details

ASME, CRN, UL
Liquid and Oil Cooling, Refrigerant Evaporators and Condensers, Residential Hydronic Systems
Copper
25 gpm
0.0378 L
Stainless Steel
316L
3/4 in MNPT
Stainless Steel
316L
ASTM 316L Stainless Steel, Copper
United States
Stainless Steel
316L
25 gpm
31,900 BtuH
225,000 BtuH
Braze Plate
8.2 in
2.83 in
225,000 BtuH
450 Degrees F
435 psig
-310 Degrees F
30
2 7/8 in
8 1/4 in
3 1/8 in
1
Male
3/4 in
NPT
30
435 PSIG Design
BPX
ASME, ASTM, CRN Certified, UL Listed
0.13 sq ft
0.126 sq ft
-40 to 300
3.53 sq ft
Brazed Plate
0.0076
5.4 lb
5.4 lb
3.18 in
