Home / Heat Exchanger, 30 Plates, 0.0704 Gal/Chnl

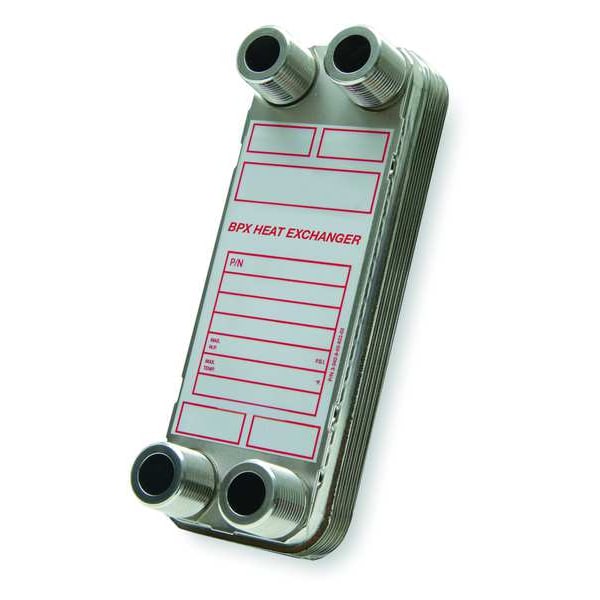

Heat Exchanger, 30 Plates, 0.0704 Gal/Chnl

Heat Exchanger, 30 Plates, 0.0704 Gal/Chnl

  • Bell & Gossett
  • Heat Exchanger, Heat Exchanger Type Braze Plate, Heat Dissipation Capacity for Water 1,100,000 BtuH, Heat Dissipation Capacity for Oil 190,875 BtuH, Total Surface Area 29.76 sq ft, Overall Height 24 1/4 in, Overall Width 7 1/2 in, Overall Depth 3 7/8 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -310 Degrees F, Flow Capacity 225 gpm, Pipe Connection Size 2 in, Channel Plate Material Stainless Steel
Web Price
$4,409.99 / each
Qty

Product Details

ASME, CRN, UL
Liquid and Oil Cooling, Refrigerant Evaporators and Condensers, Residential Hydronic Systems
Copper
225 gpm
0.2649 L
Stainless Steel
316L
2 in MNPT
Stainless Steel
316L
ASTM 316L Stainless Steel, Copper
United States
Stainless Steel
316L
225 gpm
190,875 BtuH
1,100,000 BtuH
Braze Plate
24.3 in
3.853 in
190,875 BtuH
1,100,000 BtuH
450 Degrees F
435 psig
-310 Degrees F
30
3 7/8 in
24 1/4 in
7 1/2 in
1
Male
2 in
NPT
30
435 PSIG Design
BPX
ASME, ASTM, CRN Certified, UL Listed
1.06 sq ft
1.062 sq ft
-40 to 300
29.76 sq ft
Brazed Plate
0.0704
44.5 lb
44.5 lb
7.48 in
