Home / Heat Exchanger, Brazed Plate, 204K BTU

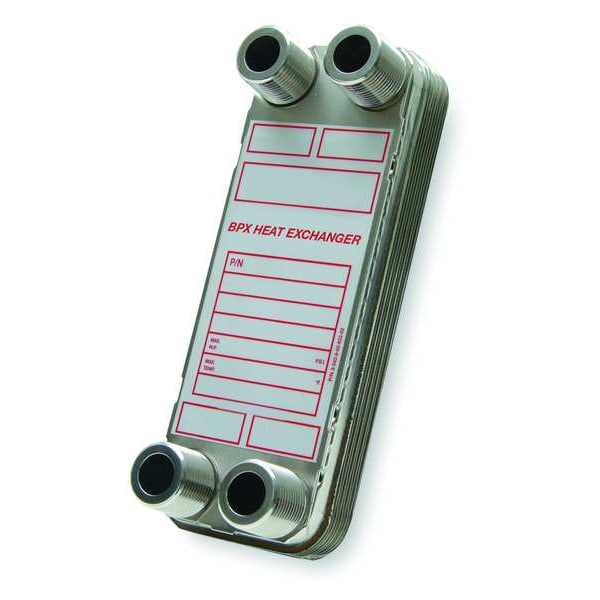

Heat Exchanger, Brazed Plate, 204K BTU

Heat Exchanger, Brazed Plate, 204K BTU

  • Bell & Gossett
  • Heat Exchanger, Heat Exchanger Type Braze Plate, Heat Dissipation Capacity for Refrigerant 204,000 BtuH, Total Surface Area 51.02 sq ft, Overall Height 24 1/4 in, Overall Width 7 1/2 in, Overall Depth 6 3/8 in, Maximum Pressure Rating 390 psig, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature -40 Degrees F, Flow Capacity 225 gpm, Pipe Connection Size 2 in, Channel Plate Material Stainless Steel

    graingerSKU: 6RGG3, mscSKU: , zoro_no: G3558003, mongo_id: 65bbe8819a749db82279572b

Web Price
$12,281.24 / each
Qty

Product Details

ASME Section VIII div. 1, CRN
Nickel
225 gpm
0.266 L
Stainless Steel
2 in MNPT, 1-3/8 in & 1-5/8 in SW
Stainless Steel
316L
316L Stainless Steel, Nickel Braze
United States
Stainless Steel
316L
6.425 in
225 gpm
204,000 BtuH
Braze Plate
24.3 in
6.425 in
204,000 BtuH
300 Degrees F
390 psig
-40 Degrees F
50
6 3/8 in
24 1/4 in
7 1/2 in
1
Male
2 in
NPT
50
390 PSIG Design
ASME Section VIII Div. 1, CRN Certified
1.06 sq ft
1.062 sq ft
-40 to 300
51.02 sq ft
Brazed Plate
0.0704
71.2 lb
71.2 lb
7.48 in
