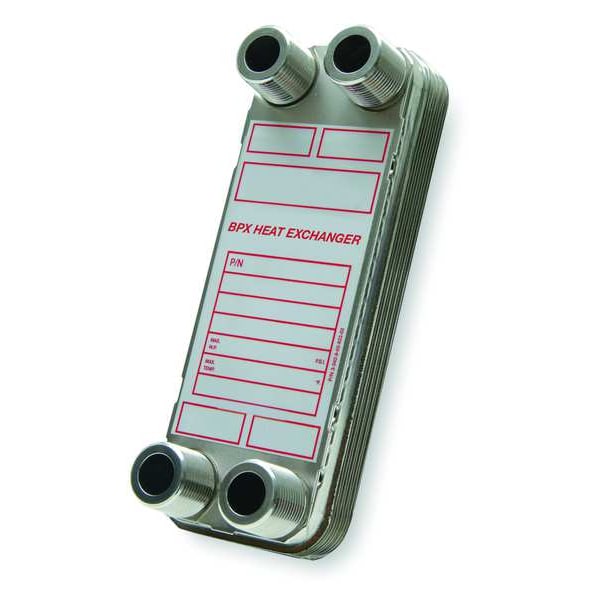

Heat Exchanger, Brazed Plate, 282,024 BTU

Heat Exchanger, Brazed Plate, 282,024 BTU

  • Bell & Gossett
  • Heat Exchanger, Heat Exchanger Type Braze Plate, Mounting Stud Thread Size 3/8 In.-16, Heat Dissipation Capacity for Water 282,024 BtuH, Heat Dissipation Capacity for Oil 98,000 BtuH, Total Surface Area 14.56 sq ft, Overall Height 12 1/4 in, Overall Width 4 3/8 in, Overall Depth 7 1/8 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -310 Degrees F, Flow Capacity 50 gpm, Pipe Connection Size 1 in

    graingerSKU: 6RGC5, mscSKU: , zoro_no: G3519485, mongo_id: 65bbe8569a749db822787075

Web Price
$4,434.99 / each
Qty

Product Details

ASME Section VIII div. 1, CRN, UL
Liquid and Oil Cooling, Refrigerant Evaporators and Condensers, Residential Hydronic Systems
Copper
50 gpm
0.0602 L
Stainless Steel
316L
1 in MNPT
Stainless Steel
316L
ASTM 316L Stainless Steel, Copper
United States
Stainless Steel
316L
7.16 in
50 gpm
98,000 BtuH
282,024 BtuH
Braze Plate
12.2 in
7.16 in
98,000 BtuH
282,024 BtuH
450 Degrees F
435 psig
-310 Degrees F
3/8-16
60
7 1/8 in
12 1/4 in
4 3/8 in
1
Male
1 in
NPT
60
435 PSIG Design
BPX
ASME Section VIII Div. 1 U-1, CE/PED, CRN Certified, NSF372, UL Listed, UPC
0.28 sq ft
0.281 sq ft
-40 to 300
14.56 sq ft
Brazed Plate Double Wall
0.0159
42.2 lb
42.2 lb
4.37 in
