Home / Heat Exchanger, Brazed Plate, 350K BTU

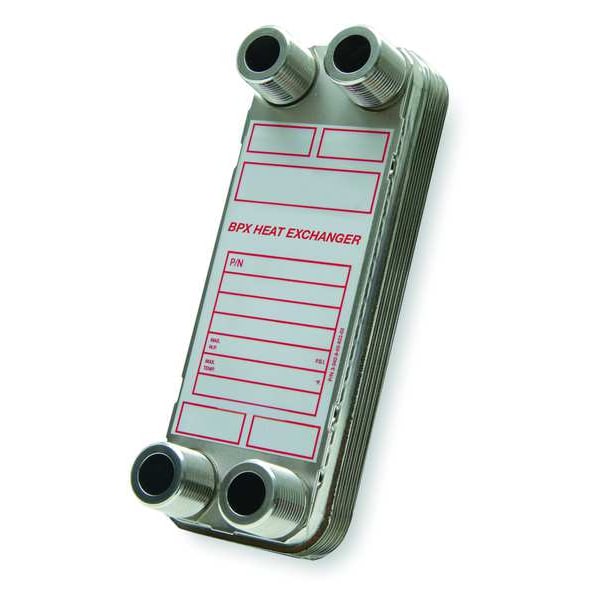

Heat Exchanger, Brazed Plate, 350K BTU

Heat Exchanger, Brazed Plate, 350K BTU

  • Bell & Gossett
  • Heat Exchanger, Heat Exchanger Type Braze Plate, Heat Dissipation Capacity for Water 350,000 BtuH, Heat Dissipation Capacity for Oil 42,600 BtuH, Total Surface Area 4.79 sq ft, Overall Height 8 1/2 in, Overall Width 3 1/8 in, Overall Depth 3 3/4 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -190 Degrees F, Flow Capacity 25 gpm, Pipe Connection Size 3/4 in, Channel Plate Material Stainless Steel

    graingerSKU: 6RGD8, mscSKU: , zoro_no: G3538893, mongo_id: 65bbe84c22d7a989a98eaf26

Web Price
$2,349.99 / each
Qty

Product Details

ASME Section VIII div. 1, CRN
Liquid and Oil Cooling, Refrigerant Evaporators and Condensers, Residential Hydronic Systems
Nickel
25 gpm
0.029 L
Stainless Steel
316L
3/4 in MNPT
Stainless Steel
316L
316L Stainless Steel, Nickel Braze
United States
Stainless Steel
316L
3.79 in
25 gpm
42,600 BtuH
350,000 BtuH
Braze Plate
8.45 in
3.79 in
350,000 BtuH
450 Degrees F
435 psig
-190 Degrees F
40
3 3/4 in
8 1/2 in
3 1/8 in
1
Male
3/4 in
NPT
40
435 PSIG Design
BPX
ASTM, PED 2014/68/EU
0.13 sq ft
0.126 sq ft
-40 to 300
4.79 sq ft
Brazed Plate
0.0076
9.4 lb
9.4 lb
3.18 in
