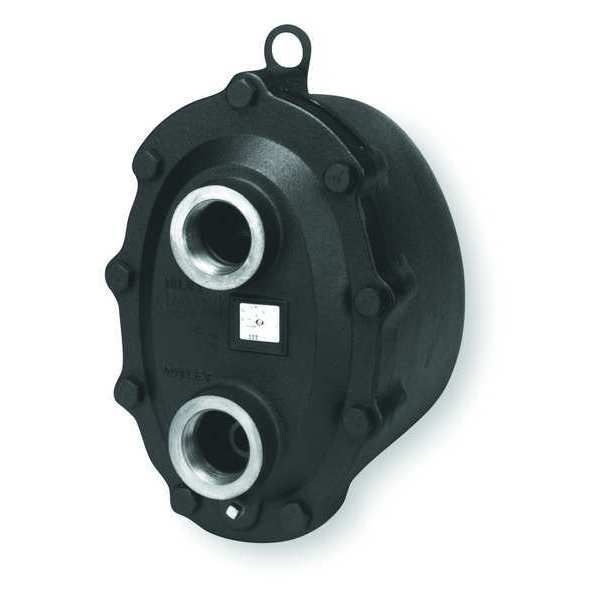

Steam Trap, 377F, Cast Iron, 0 to 15 psi

SKU
Brand Bell & Gossett
Categories
Description Steam Trap, (F)NPT Connections 2 in, Max. Operating PSI 15 psi, End to End Length 6 5/8 in, Condensate Capacity Lbs/Hr 24,000 lb/hr, Max. Temp. 377 Degrees F, Type Float And Thermostatic, Downstream PSI Range 0 to 15 psi, Body Material Cast Iron, NPT Inlet 2 in, NPT Outlet 2 in, NPT Port 2 in, Pipe Configuration (2) Pipe, (1) Inlet and (1) Outlet, Pressure Air Vent Self-Adjusting
graingerSKU: , mscSKU: , zoro_no: G0474293, mongo_id: 65bbe5c03aaddbd5a9fe46c3

Web Price

$3,879.99 / each

Qty

Product Details

(F)NPT Connections 2 in

Application Drains Steam Mains, Unit Heaters, Blast Coils, Heat Exchangers and for all Process Applications Requiring Removal of Condensate as Quickly as it is Formed, Particularly when Controlled by Modulating Temperature or Pressure Control Valves

Body Material Cast Iron

Condensate Capacity Lbs/Hr 24,000 lb/hr

Country of Origin (subject to change) United States

Downstream PSI Range 0 to 15 psi

End to End Length 6 5/8 in

Max. Operating PSI 15 psi

Max. Temp. 377 Degrees F

NPT Inlet 2 in

NPT Outlet 2 in

NPT Port 2 in

Package Quantity 1

Pipe Configuration (2) Pipe, (1) Inlet and (1) Outlet
