Home / Steam Trap, 406F, Cast Iron, 0 to 125 psi

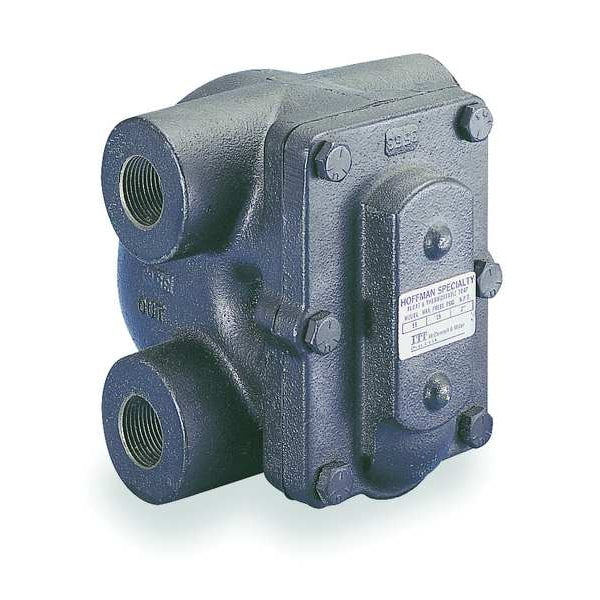

Steam Trap, 406F, Cast Iron, 0 to 125 psi

SKU
Brand Bell & Gossett
Categories
Description Steam Trap, (F)NPT Connections 1 in, Max. Operating PSI 125 psi, End to End Length 5 1/2 in, Condensate Capacity Lbs/Hr 1,190 lb/hr, Max. Temp. 406 Degrees F, Type Float And Thermostatic, Downstream PSI Range 0 to 125 psi, Body Material Cast Iron, NPT Inlet 1 in, NPT Outlet 1 in, NPT Port 1 in, Pipe Configuration (4) Pipe, (2) Inlet and (2) Outlet, Pressure Air Vent Self-Adjusting
graingerSKU: , mscSKU: , zoro_no: G0586485, mongo_id: 65bbe84c22d7a989a98eaf25

Web Price

$742.49 / each

Qty

Product Details

(F)NPT Connections 1 in

Application Drains Steam Mains, Unit Heaters, Blast Coils, Heat Exchangers and for all Process Applications Requiring Removal of Condensate as Quickly as it is Formed, Particularly when Controlled by Modulating Temperature or Pressure Control Valves

Body Material Cast Iron

Condensate Capacity Lbs/Hr 1,190 lb/hr

Country of Origin (subject to change) United States

Downstream PSI Range 0 to 125 psi

End to End Length 5 1/2 in

Max. Operating PSI 125 psi

Max. Temp. 406 Degrees F

NPT Inlet 1 in

NPT Outlet 1 in

NPT Port 1 in

Package Quantity 1

Pipe Configuration (4) Pipe, (2) Inlet and (2) Outlet
