Home / Steam Trap, 406F, Cast Iron, 0 to 30 psi

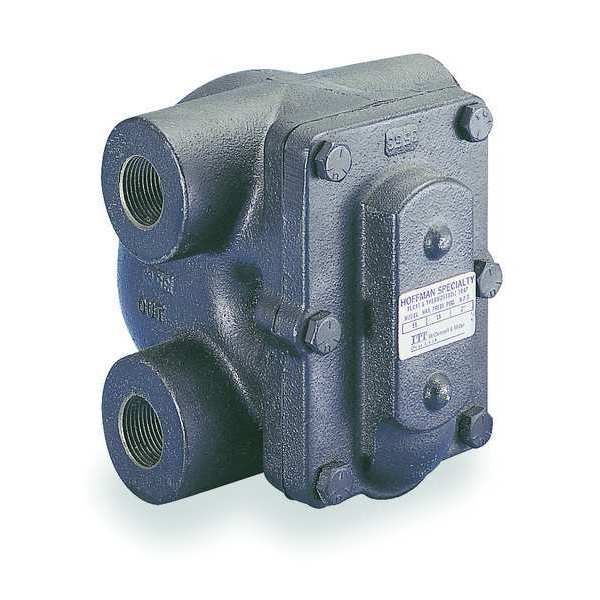

Steam Trap, 406F, Cast Iron, 0 to 30 psi

SKU
Brand Bell & Gossett
Categories
Description Steam Trap, (F)NPT Connections 1 1/4 in, Max. Operating PSI 30 psi, End to End Length 5 1/2 in, Condensate Capacity Lbs/Hr 2,200 lb/hr, Max. Temp. 406 Degrees F, Type Float And Thermostatic, Downstream PSI Range 0 to 30 psi, Body Material Cast Iron, NPT Inlet 1 1/4 in, NPT Outlet 1 1/4 in, NPT Port 1 1/4 in, Pipe Configuration (4) Pipe, (2) Inlet and (2) Outlet, Pressure Air Vent Self-Adjusting
graingerSKU: , mscSKU: , zoro_no: G0654604, mongo_id: 65bbe9f322d7a989a9988cd7

Web Price

$766.24 / each

Qty

Product Details

(F)NPT Connections 1 1/4 in

Application Drains Steam Mains, Unit Heaters, Blast Coils, Heat Exchangers and for all Process Applications Requiring Removal of Condensate as Quickly as it is Formed, Particularly when Controlled by Modulating Temperature or Pressure Control Valves

Body Material Cast Iron

Condensate Capacity Lbs/Hr 2,200 lb/hr

Country of Origin (subject to change) United States

Downstream PSI Range 0 to 30 psi

End to End Length 5 1/2 in

Max. Operating PSI 30 psi

Max. Temp. 406 Degrees F

NPT Inlet 1 1/4 in

NPT Outlet 1 1/4 in

NPT Port 1 1/4 in

Package Quantity 1

Pipe Configuration (4) Pipe, (2) Inlet and (2) Outlet
