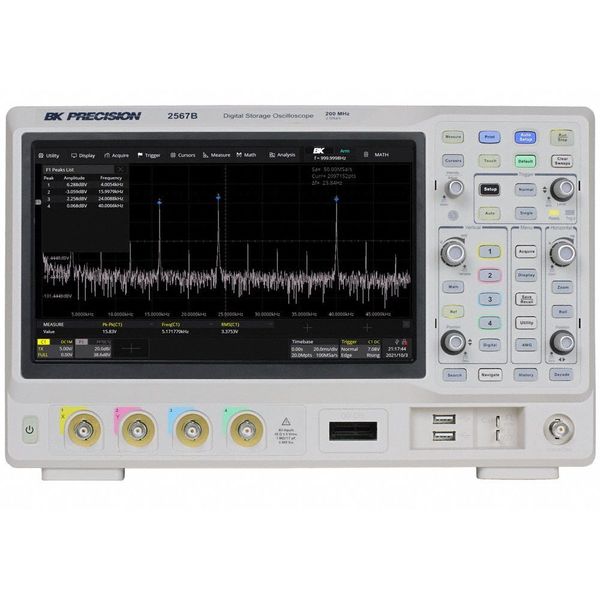

Digital Storage Oscilloscope

SKU
Brand B&K Precision
Categories
Description Digital Storage Oscilloscope, Bandwidth (MHz) 100 MHz, 4 Channels, 10.1 in (1024 x 600) Capacitive; Touchscreen LCD Display Display, True RMS Yes, Sampling Rate 2 GSa/s; 1 GSa/s, 1 ns/div to 1000 s/div Max./Min. Sweep Speed, Store and Recall Waveform Data, Setups and Screenshots on a USB Flash Drive., History Mode Can Store up to 90,000 Triggered Waveforms. Waveform / Measurement Stored, Max. Record Length 200 Mpts/ch; 100 Mpts/ch

Web Price

$3,377.49 / each

Qty

Product Details

Bandwidth (MHz) 100 MHz

Calibration Certificate Yes

Channels 4

Country of Origin (subject to change) China

Cursors & Zoom Ranges From Full Record Overview To Zoom In Up To Sample Level At Any Record Length

Cursors and Zoom Ranges From Full Record Overview To Zoom In Up To Sample Level At Any Record Length

Display 10.1 in (1024 x 600) Capacitive; Touchscreen LCD Display

Features A Built-In DDS Waveform Generator Outputs Waveforms with Maximum Frequencies of 50 MHz and +/-3 V Amplitude., Optional MSO Feature Adds 16 Digital Channels Allowing the Acquisition and Triggering of Mixed Signal Waveforms., Serial Bus Decoding Supports I2C, SPI, UART, CAN, and LIN Protocols., Sine, Square, Ramp, Pulse, Noise, DC and Arbitrary Waveforms are Available., USB (USBTMC-Compliant) and LAN Interfaces Included.

FFT Analysis FFT Analysis with Selectable Memory from 2 kpts of 2 Mpts

Glitch Capture 1 ns Peak Detect on Each Channel

Includes Four Passive Probes (one per channel); Power Cord; USB Cable; Certificate of Calibration

Input Sensitivity 1 M Ohms: 500 micron V/div to 10 V/div; 50 Ohms: 500 micron V/div to 1 V/div

Interface USB (USBTMC-compliant); LAN

Manufacturers Warranty Length 3 yr on Main Instrument, 90 Days on Accessories

Max. Record Length 200 Mpts/ch; 100 Mpts/ch

Max./Min. Sweep Speed 1 ns/div to 1000 s/div

Package Quantity 1

Persistence Off, 1s, 5s, 10s, 30s, infinite

Real Time Clock Yes

Safety Rating CAT I, 400 Vpk max

Sampling Rate 2 GSa/s; 1 GSa/s

Triggering Mode Dropout, Interval, Normal, Pattern, Pulse Width, Runt, Serial, Single, Slope, Auto, Edge, Video, Window

True RMS Yes

Waveform / Measurement Stored Store and Recall Waveform Data, Setups and Screenshots on a USB Flash Drive., History Mode Can Store up to 90,000 Triggered Waveforms.
