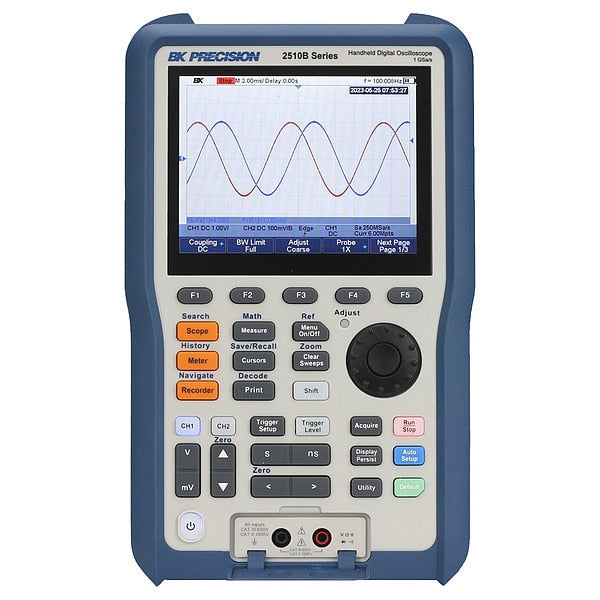

Portable Oscilloscope, 2 Channels

SKU
Brand B&K Precision
Categories
Description Portable Oscilloscope, Bandwidth (MHz) 200 MHz, 2 Channels, 5.6 in Color TFT-LCD Display, True RMS Yes, Sampling Rate 1 GSa/s, USB Host Port Waveform / Measurement Stored, FFT Analysis Yes, Cursors and Zoom Yes, Real Time Clock Yes, Dropout, Edge, Interval, Pattern, Pulse Width, Runt, Slope, Video, Window Triggering Mode, Input Sensitivity 2 mV/div to 100 V/div, 1 sec, 10 sec, 30 sec, 5 sec, Infinite, Off Persistence

Web Price

$6,053.74 / each

Qty

Product Details

Bandwidth (MHz) 200 MHz

Battery Life Up to 4 hr

Calibration Certificate Yes

Capacitance Measurements 4.00 nF, 40.00 micron F, 40.00 nF, 400.0 micron F, 400.00 nF

Channels 2

Country of Origin (subject to change) China

Cursors and Zoom Yes

Display 5.6 in Color TFT-LCD

Features FFT Plus 7 Additional Math Functions, Fully Isolated 1000V CAT II and 600V CAT III Input Rating, Serial Bus Decoding for IIC, SPI, UART, CAN, and LIN Protocols

FFT Analysis Yes

Includes (2) Touch-Protected 250 MHz Bandwidth Probes

Input Sensitivity 2 mV/div to 100 V/div

Interface USB

Manufacturers Warranty Length 3 yr

Package Quantity 1

Persistence 1 sec, 10 sec, 30 sec, 5 sec, Infinite, Off

Real Time Clock Yes

Safety Rating CAT II 1,000V; CAT III 600V

Sampling Rate 1 GSa/s

Triggering Mode Dropout, Edge, Interval, Pattern, Pulse Width, Runt, Slope, Video, Window

True RMS Yes
