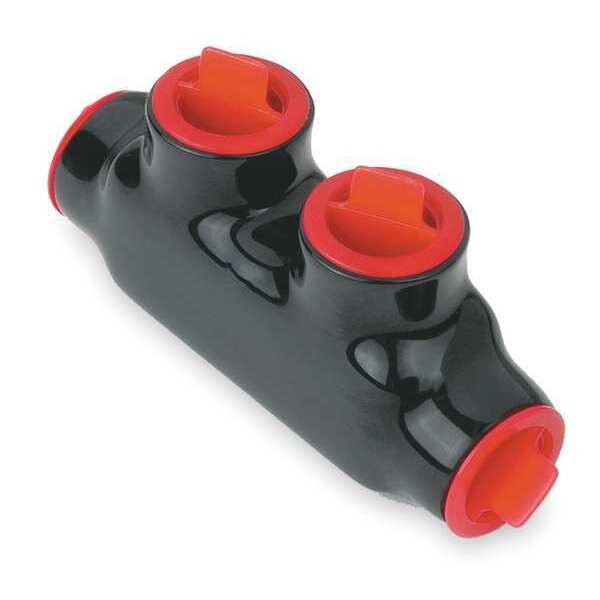

Insulated Multitap Connector, 3.50 In. L

SKU
Brand Blackburn
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
graingerSKU: 1YRL3, mscSKU: , zoro_no: G2668321, mongo_id: 65bbe8e222d7a989a991f2e6

Web Price

$42.49 / each

Qty

Product Details

Body Material Aluminum

Color Black

Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors

Connector Type Double-Sided Entry

Country of Origin (subject to change) United States

Direct Burial Rated No

Features PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs.; Compact design provides space efficiencies.; All cable entry are equipped with an anti-oxidation compound.

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 1/0 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Hex

Hex Size 3/16 in

Insulation Material PVC

Length 3.5 in

Length (Straight Wireway) 3.5 in

Material Aluminum

Max. Conductor Size 1/0 AWG

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG

No. of Ports 2

Number of Ports 2

Outer Dimensions (inches) 7.5x6.7x4.7

Overall Length 2.68 in

Overall Width 0.81 in

Package Quantity 1

Screw Material Aluminum

Special Features All Cable Entry are Equipped With An Anti-Oxidation Compound, Eliminates Insulation Failures, Insulated, Reduces Outage Costs, Space Efficiencies, Ultraviolet Resistant

Standard UL E9809, CSA 6591

Standards CSA 6591, UL E9809

Stud Size 3/16 in

Tap Shape T

Temperature Rating 90 Degrees C

Type AMT Connector

Voltage Rating 600V

Width 0.88 in

Wire Size Range 14 AWG - 1/0 AWG
