Name: Insulated Multitap Connector, 4.13 In. L
Brand: Blackburn
SKU: G0985591
Price: 65.19 USD
Availability: InStock

Home / Insulated Multitap Connector, 4.13 In. L

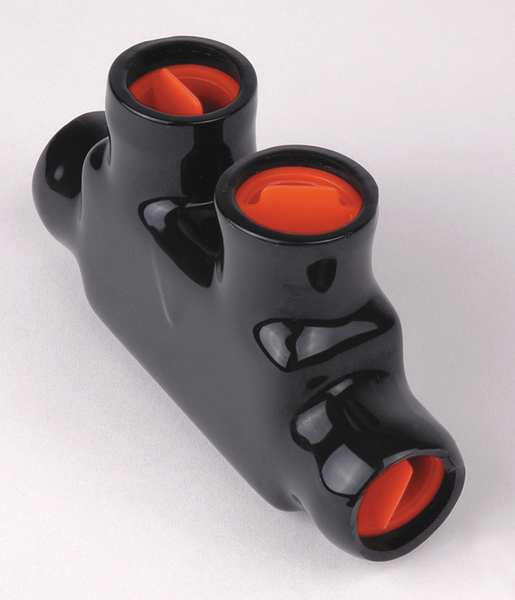

Insulated Multitap Connector, 4.13 In. L

SKU
Brand Blackburn
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
graingerSKU: 1YRL4, mscSKU: , zoro_no: G0985591, mongo_id: 65bbe9bf22d7a989a99754e5

Web Price

$65.19 / each

Qty

Product Details

Body Material Aluminum

Color Black

Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors

Connector Type Double-Sided Entry

Country of Origin (subject to change) United States

Direct Burial Rated No

Features PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs.; Compact design provides space efficiencies.; All cable entry are equipped with an anti-oxidation compound.

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 250 kcmil

For Stranded Copper Wire Size - Minimum 6 AWG

For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG

Head Style Hex

Hex Size 5/16 in

Insulation Material PVC

Length 4.13 in

Length (Straight Wireway) 4.13 in

Material Aluminum

Max. Conductor Size 250 kcmil

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 6 AWG

No. of Ports 2

Number of Ports 2

Overall Length 4 in

Overall Width 1.06 in

Package Quantity 1

Product Name BLACKBURN MECHANICAL

Product Type AMT Connector

Screw Material Aluminum

Special Features All Cable Entry are Equipped With An Anti-Oxidation Compound, Eliminates Insulation Failures, Insulated, Reduces Outage Costs, Space Efficiencies, Ultraviolet Resistant

Special Functions PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs.

Standards CSA 6591, UL E9809

Stud Size 5/16 in

Tap Shape T

Voltage Rating 600 V

Width 1.0 in

Wire Size Range 6 AWG - 250 kcmil
