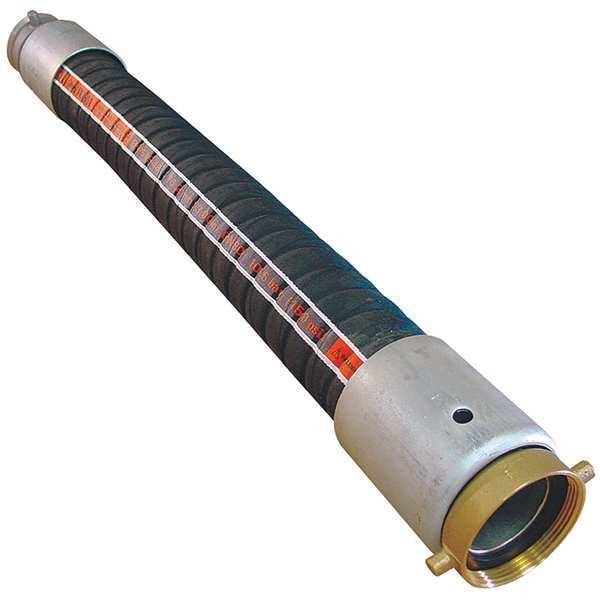

3" ID x 50 ft NBR Petroleum Transfer Hose BK

SKU
Brand Boston
Categories
Description Item Petroleum Transfer Hose, Hose Inside Dia. 3 in, Hose Outside Dia. 3 39/64 in, Hose Length 50 ft, Hose Tube Material NBR, Hose Cover Material Nitrile, Hose Color Black, Max. Working Pressure @ 70 F 150 psi, Vacuum Rating 28.00 in Hg, Temp. Range -40 Degrees to 180 Degrees F, Standards RMA Class A, Hose Configuration Coupled Assembly, Hose Fitting A Material Aluminum, Hose Fitting B Material Aluminum, Hose Fitting A Type MNPT, Hose Fitting B Type FNPSM, Hose Fitting A Size 3 in
graingerSKU: 45GG26, mscSKU: , zoro_no: G2456828, mongo_id: 65bbe7453aaddbd5a9084c7f

Web Price

$2,719.99 / each

Qty

Product Details

Color Black

Compatible Chemicals Air, Antifreeze (Coolant), Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Heptane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lubricated Air, Methyl (Methanol), Mineral Oil , Motor Oil, Salt Water, Stoddard Solvent (Mineral Spirits), Vegetable Oil

Country of Origin (subject to change) Turkey

Coupled Assembly / Bulk Coupled Assembly

Cover Material Corrugated NBR

Fitting Material Aluminum x Aluminum

Fitting Size 3 in x 3 in

Fitting Type MNPT x F NPSM

For Media Type Methanol, Antifreeze, Ethylene Glycol, Gasoline, Heptane, Kerosene, Stoddard Solvent, Diesel Fuel, Hydraulic Fluid, Water, Motor Oil, Air, Fuel Oil, Lubricated Air, Mineral Oil , Vegetable Oil

Fuel Hose Type Petroleum Hose Assembly

Hose Color Black

Hose Configuration Coupled Assembly

Hose Cover Material Nitrile

Hose Fitting A Material Aluminum

Hose Fitting A Size 3 in

Hose Fitting A Type MNPT

Hose Fitting B Material Aluminum

Hose Fitting B Size 3 in

Hose Fitting B Type FNPSM

Hose Fittings Aluminum 3 in MNPT x Aluminum 3 in FNPSM

Hose Inside Dia. 3 in

Hose Length 50 ft

Hose Outside Dia. 3 39/64 in

Hose Tube Material NBR

Inside Dia. 3

Inside Dia. - Gasoline Hose 3

Length 50 ft.

Length - Gasoline Hose 50 ft.

Max. Pressure - Gasoline Hose 600 psi

Max. Working Pressure @ 70 F 150 psi

Meets RMA Class A

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Outside Dia. 3-39/64

Package Quantity 1

Reinforcement High-Tensile Synthetic Textile Dual Steel Helical Wires and Dual Anti-Static

Standards RMA Class A

Temp. Range -40 Degrees to 180 Degrees F

Tube Material NBR

Tube Material - Gasoline Hose NBR

Type - Gasoline Hose Petroleum Transfer Hose

Vacuum Rating 28.00 in Hg
